Wilson’s Carpentry and joinery / by John Wilson (1891)
Wilson, John · Manchester [England] : Percy Bros. · leaf 36

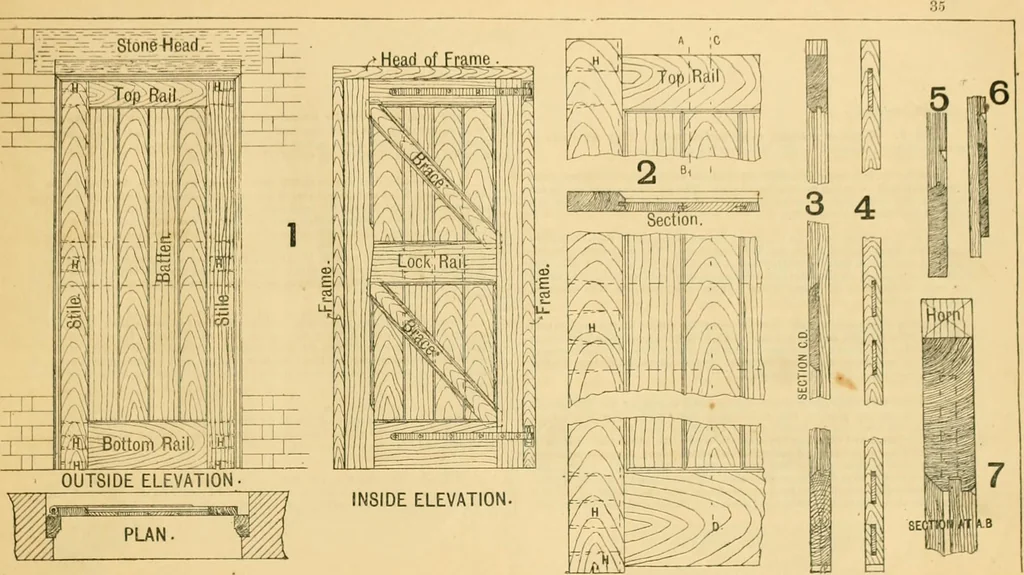

section showing a stile and part ofthe boards. The haunchings in all the rails are shown, and marked H ; and also thewedges. Fig. 3. Shows a vertical section to the same soale.Fig. 4. Shows the edge of the door when finished. n through a bottom rail when rebated and Fig. 5. Shows a secbevelled to… … DOORS continued.— Fig 1. Shows aD ordinary tour-panelled door. They are made ofvarious thicknesses from 1 to 2i, this door being taken at 2. In order to save room, six different methods are represented on one door,four on the first view and two on the second. The outside vertical pieces arethe…
Carpentry · Joinery
