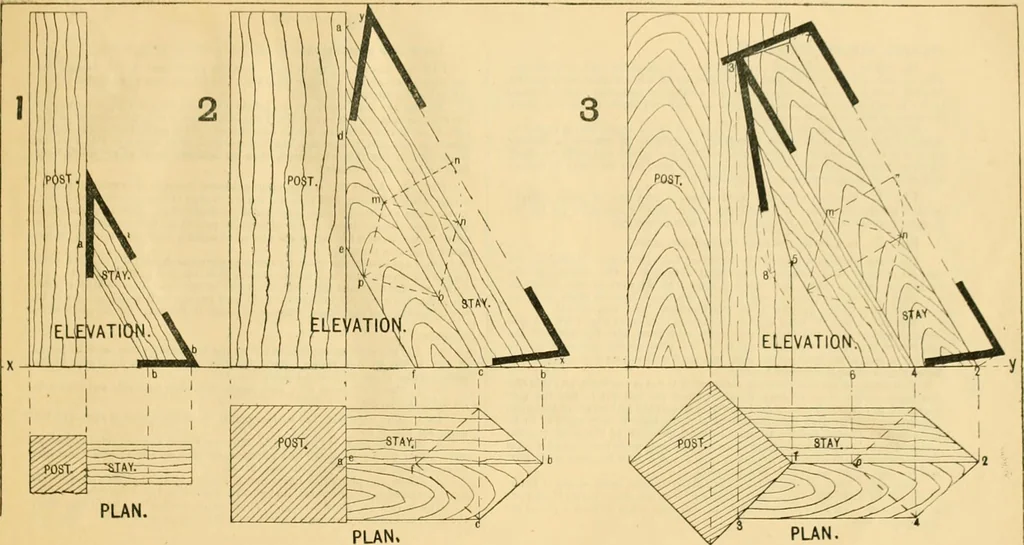

en a plan orelevation must be drawn showing the true length by projecting or turning itupon a plane parallel to itself. 3. In Fig. 3, develope the two sides of the post, showing the portioncovered by the stay. 4. Arrange a triangular post and stay, similar to Fig. 3, i.e., the truesection of each… … SPLAYED WINDOW LININGS. The object ol splayed jambs to a window, is to allow the light to be thrownmore to the sides or up against the ceiling, when it is not possible to get thewindow wide enough, or as close to the ceiling as necessary; and in base-ments it may even be necessary to bevel the…
