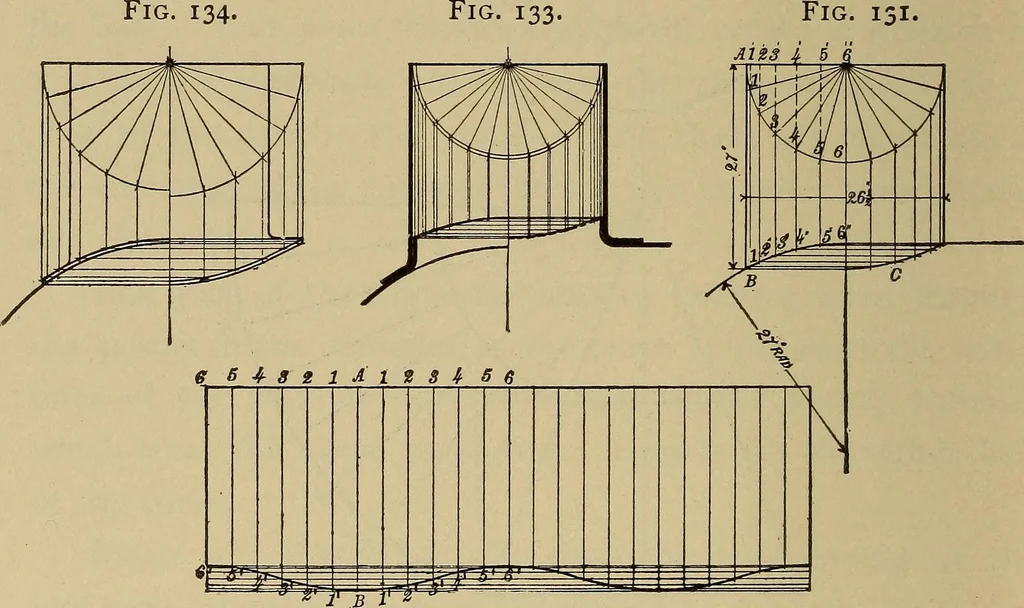

HANICAL DRAWING. PROB. i8,*Fig. 131.—To draw the curve of intersection ofa small cyl. with a larger. To the left of the center-line ofFig. 131 is a half cross-section, and to the right a half eleva-tion of the two cyls. Draw the half plan of the small cyl., which will be asemicircle, and divide it… … Fig. 132. these points draw hors. to intersect in corresponding pointsthe pers. on the half elevation. Through the latter pointsdraw the curve of intersection C. Prob. 19.—To draw the development of the smaller cyl.of the last prob. Draw a rectangle, Fig. 132, with sides equal to the circum-…
