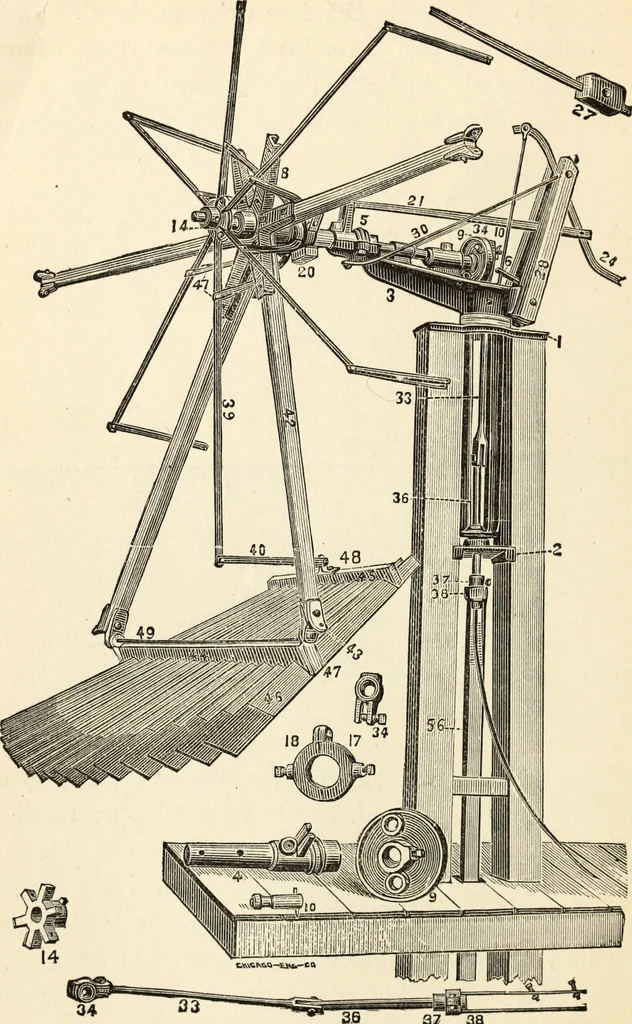

Fig. 22. 4, turn-table sleeve: 5, turn-table sleeve clip; 6, mainshaft; 8, spider ; 9, crank wheel; 10, crank pin ; 11, slidehead; 14, front slide; 17, chilled clutch ring (2 pieces) ;20, clutch oil cup; 21, forked clutch bar; 24, weightlever; 27, weight; 28, truss posts; 30, truss rod;… … Fig. 23. 01. aa /7~^W^¥iWindmills
