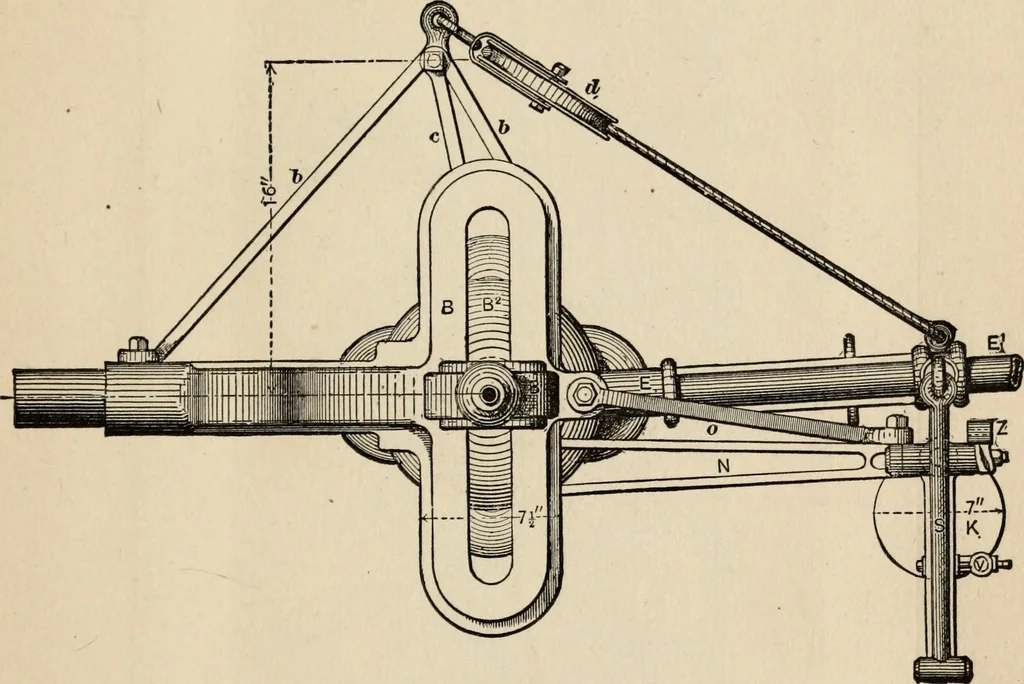

/ AMERICAN WINDMILLS- OTHER TYPES. 113 side elevation of the mill, with wheel, arms, and rudderbroken off, showing the construction of wheel centre,arrangement of governor, and connections of crank.Fig. 38 is an elevation of the mill proper, showing theconstruction of the wheel and rudder, or vane,… … Fig. 35. section through bed piece and turn-table, showing stapleconnection with swivel guide. Fig. 35 is a plan showingposition of vane or rudder when full in the wind, andarrangement of wire rope for shifting out of the windwhen it is desired to stop the mill. The smaller pieces(Fig. 37) are…
