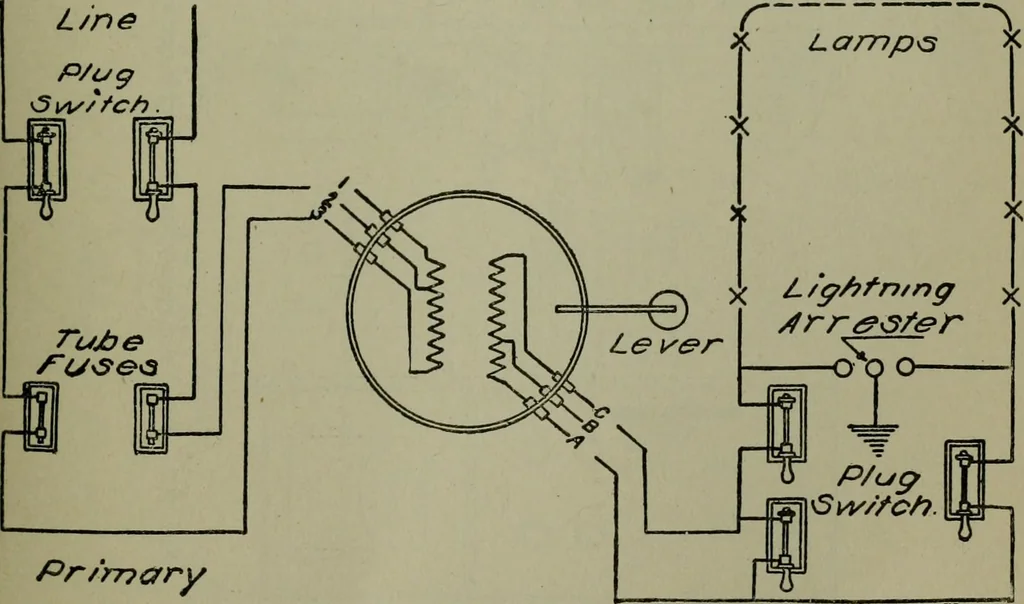

C6Pistant CurrentTransformer <Primary Plug Switch Q T primaryBack View Fig. 200.—Panel and connections for series arc lighting system with constant-current transformers. … f^r/merry ^GQ on cherry. Fig. 201.—Connections for a 2.5-lamp constant-current transformer. For 60 per cent,load, connect 1 and 3 to the line and B and C to the load; for SO per cent. load, connect 1 and3 to the line and C and B to the load; for full load, connect 2 and 3 to the line and A and B…
