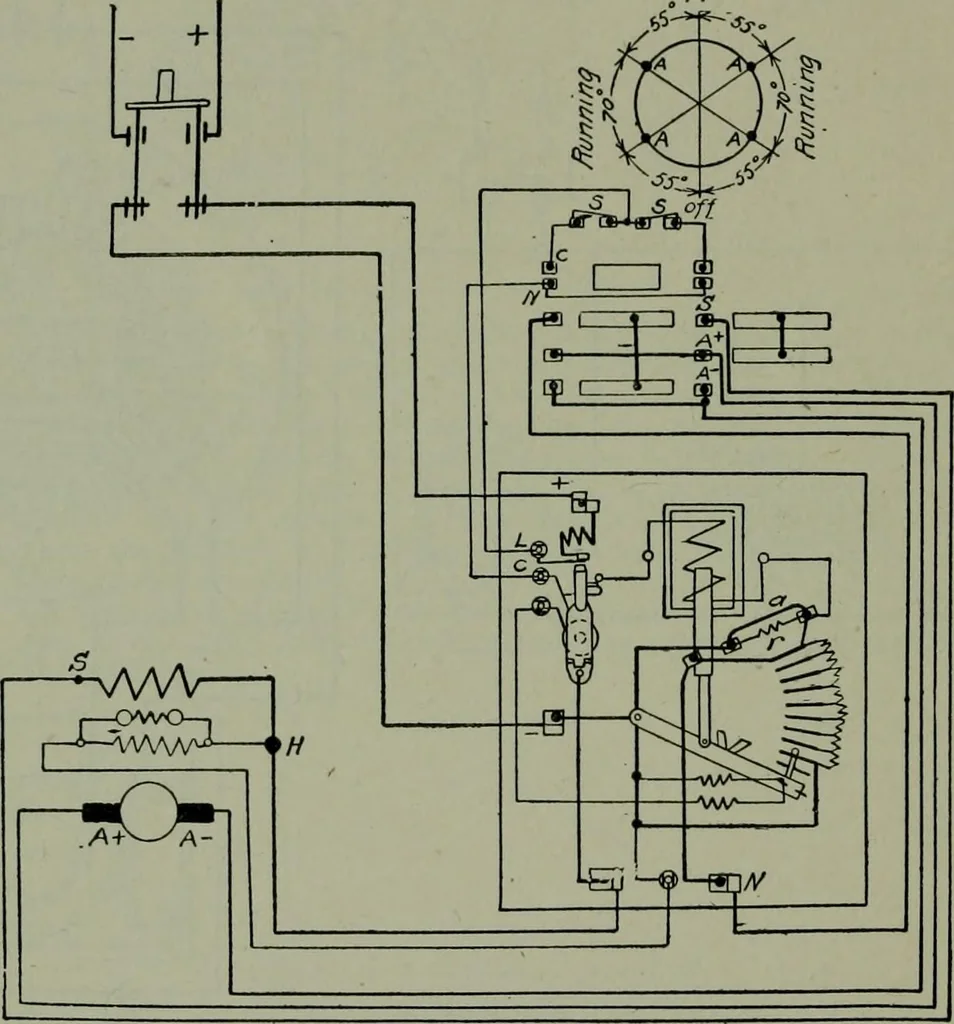

Fig. 262. Fig. 263. Fig. 262.—Connections for an organ regulator and starting box, the no-load release beingconnected across the line. Arrangement is shown for a series motor. There would be nochange with a shunt motor, other than in the starting rheostat. Fig. 263.—Connections for a self-starter… … Fig. 264. RHEOSTATS AND CONTROLLERS 167 ■a■O
