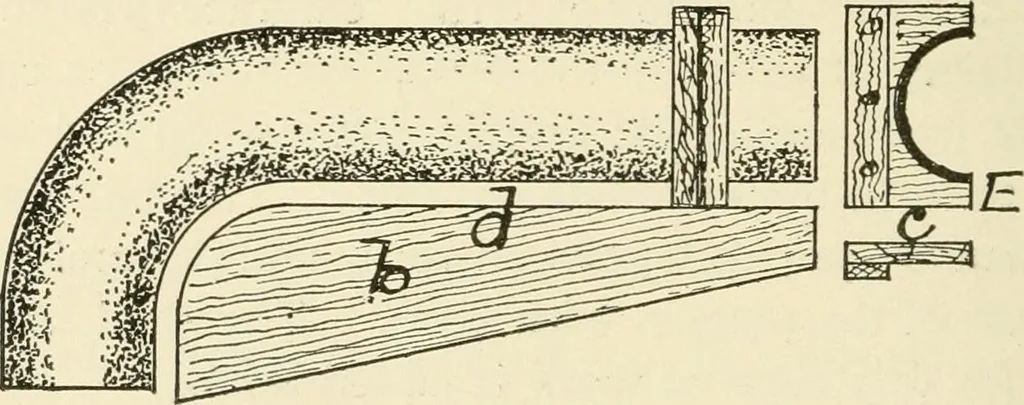

Fig. 79. strickle shown at (c) in Fig. 80. The core board is simplya piece of board planed up true on both sides, and cut to … Fig. 80. the correct shape. Its side (d) is cut in such a way thatwhen the strickle is set at right angles to it and slid along MISCKI^I^ANKOUS EXAMPI.es 135 its length, it will give the desired size and shape to thecore. When the molder uses this apparatus, he first laysthis prepared core board on…
Patternmaking
