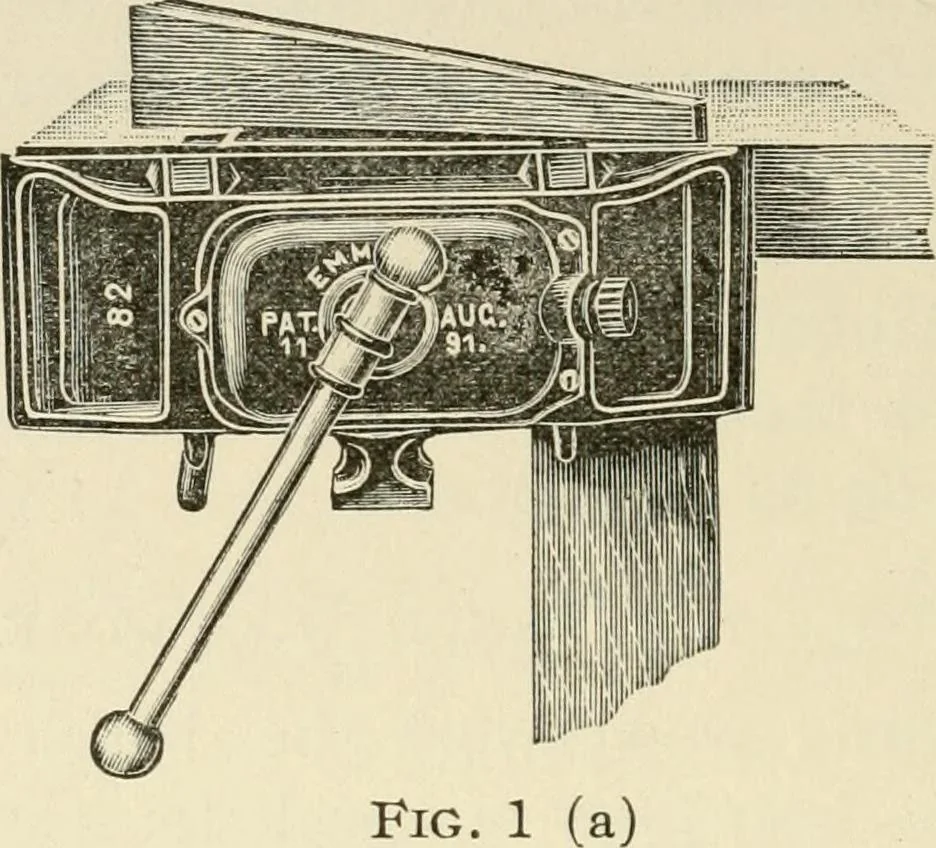

An illustration from Wood pattern-making; the fundamental principles and elementary practice of the art, 1906, leaf 183 — Fig. 1. is that illustrated by Fig. 1. If this is fitted with a No.1 Emmert Pattern-Makers Universal Vise, shown by 168 WOOD PATTERN MAKING Fig. 1 (a), instead of the one shown at the head of thebench, it will be the best that can be obtained for this part of … shop equipment. Thebcnch hOOR is a very useful part ofbench equipment, one form of which is shown at Fig.2; it should be twelve to fourteen inches long. Someform of saw-horse is also a necessary part of pattern shop
