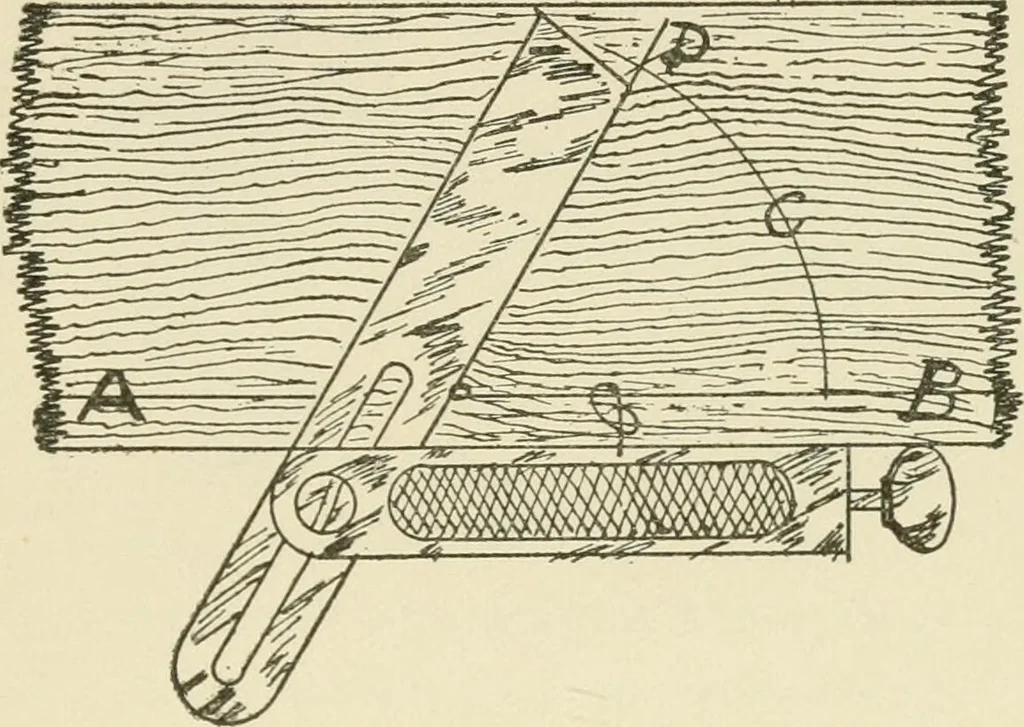

Fig. 8.thumb screw fastens it. The size of both square andbevel is expressed by the length of the blade in inches.The miter square is similar to the try square, but has theblade set permanently at an angle of 45° to the stock orbeam. APPENDIX 173 The dividers are used in spacing and in laying… … Fig. 9 a bevel at an angle of 60° and 120°. To do this, take aboard that is planed fiat and one edge jointed, that isplaned straight. Gauge a line at any distance from thisstraight edge; from any point on this line, with anyradius, use the dividers to make the arc (B C). Withsame radius from (B)…
