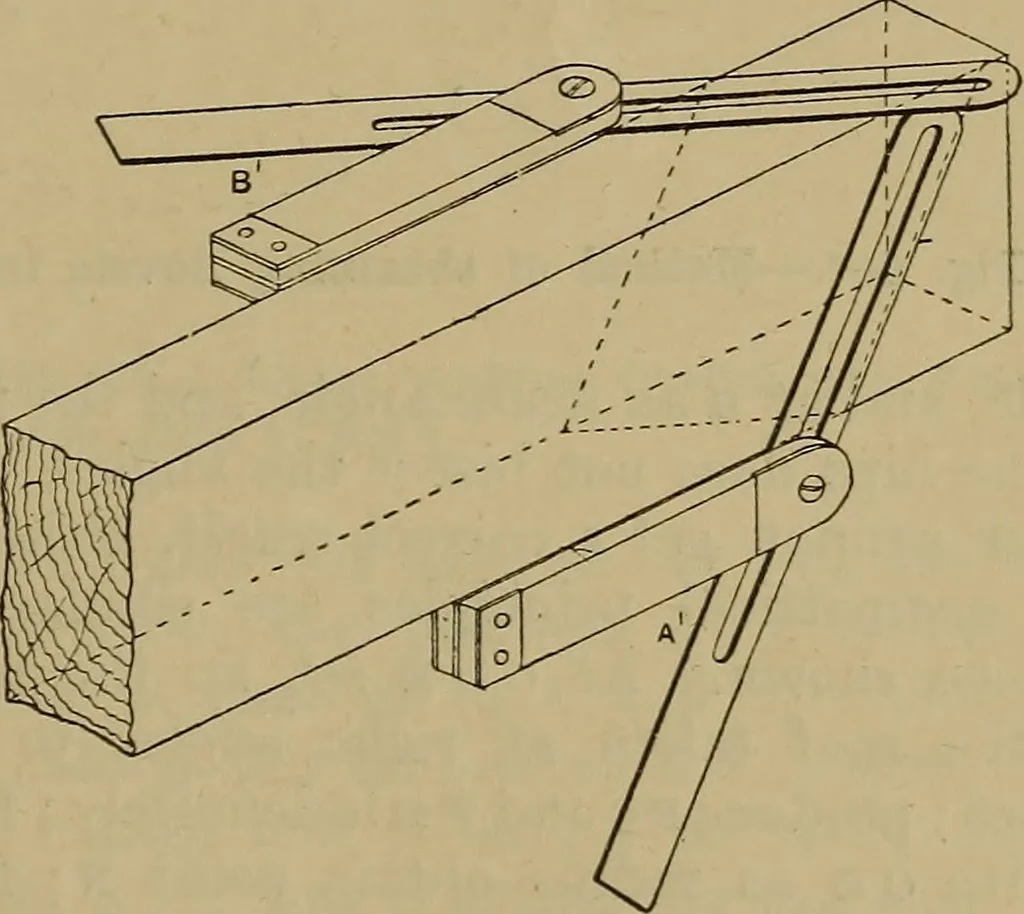

Fig. 645.—Applying Bevel to Side of Rafter. described below. Set out for the bevelsas shown at Fig. 643, the bevel at a beingfor the vertical cut, and that at b for thebevel to be applied at the edge of the rafter.The bevels can be set from the drawingas shown at Fig. 643. Fig. 644 shows thebevel b… … Fig. 646.—Application of Bevels to Side andEdge of Rafter. will ^perhaps be more clearly understoodfrom the isometric view given at Fig. 646,which shows the application of the bevels.The form of the cut c (Fig. 643) is the bevelfor feet of rafters. 170 CARPENTRY AND JOINERY. Bevels for Hips, etc.,…
