Wood pattern-making; the fundamental principles and elementary practice of the art (1906)

Purfield, Horace Traiton · Ypsilanti, Mich., The Scharf tag, label & box co. · leaf 218

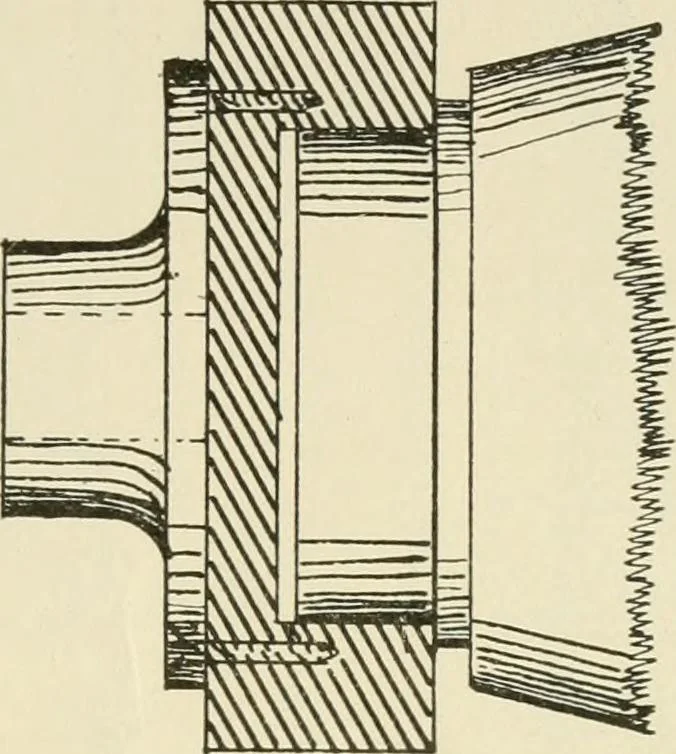

An illustration from Wood pattern-making; the fundamental principles and elementary practice of the art, 1906, leaf 218 — n use for special work,one of which is represented by Fig. 50, and is called acup chuck. One of its uses is to hold a sphere in the lathewhile it is being given the finishing touches. Some ofthe specific uses of these appliances are described in thebody of this volume. APPENDIX 203 Not many… … FiG. 50. Ing chisel, illustrated at Fig. 52. These two, in their dif-ferent sizes are the only tools used by the turner for cuttingthe fiber of the wood. All theothers are really scraping tools,and do not actually cut. The other tools most used forpattern turning are illustrated by Fig. 53. At A is…
