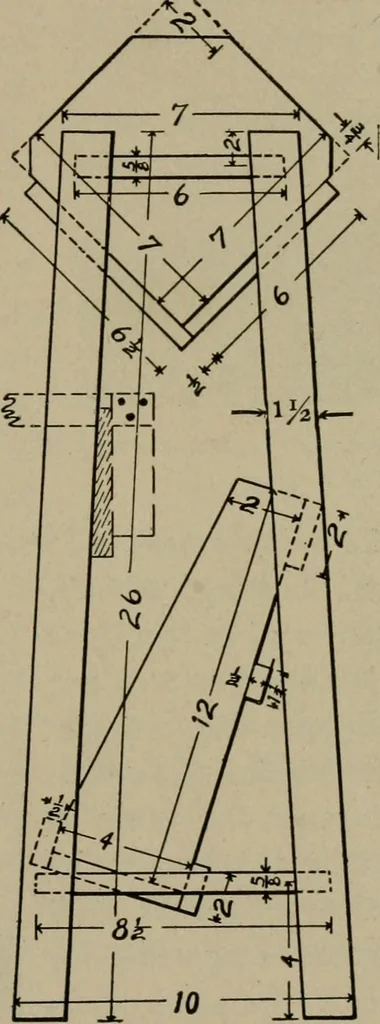

should bemade in the same manneras the legs for the taborets.Fig. 180 or Fig. 195.After the four legs havebeen dressed straight andsquare, calculate theamount of slant, and makethe block to be used be-tween the head of the try-square blade and the leg inlining around the ends,and in determining… … Fig. 242—Book Rack 174 WOODWORK FOR THE GRADES top and 10 inches wide at the bottom. The slant height is 24inches. This gives a slant of 3 inches in 24 inches of height,or 1 inch in width to each 8 inches of height. The slant is equal on each side, therefore
