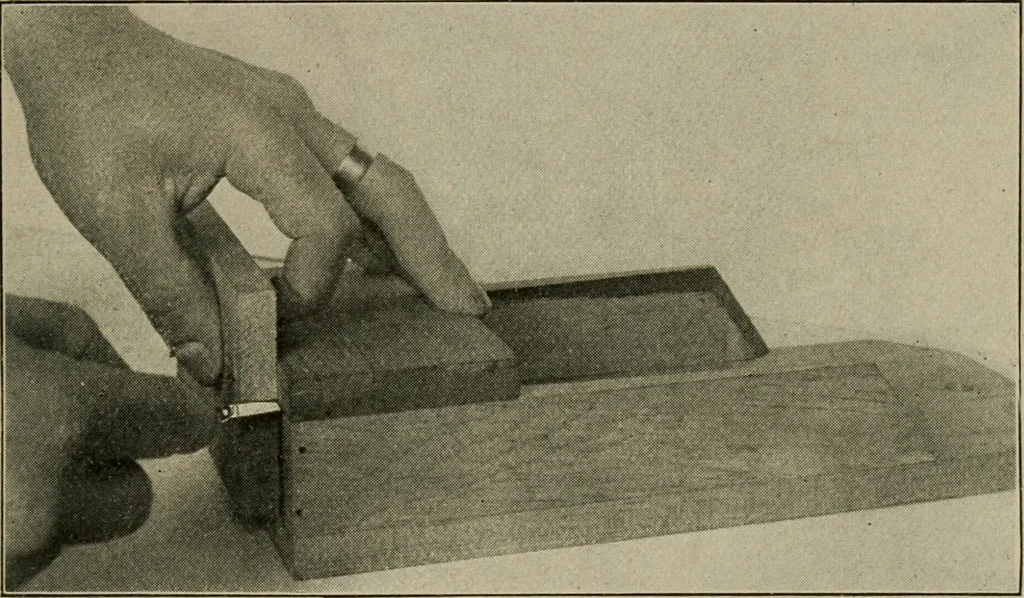

Fig. 268—Scouring Box WOODWORK FOR THE GRADES 193 until all surfaces are true, the ends trimmed and the edgeschamfered as shown in Fig. 267. The piece is then rippedin two, as in Figs. 184 and 185, and the other edges jointed.The bottom and face-piece are then made. One piece isworked to a size… … Fig. 269—Measuring Width of Bottom The bottom is then fitted by marking the width as shownin Fig. 269 and sawing and planing to the marks. The lengthis marked as shown in Fig. 270. A line is drawn entirely aroundthe piece and the end sawed and planed. It is then nailed inplace. But little finish…
