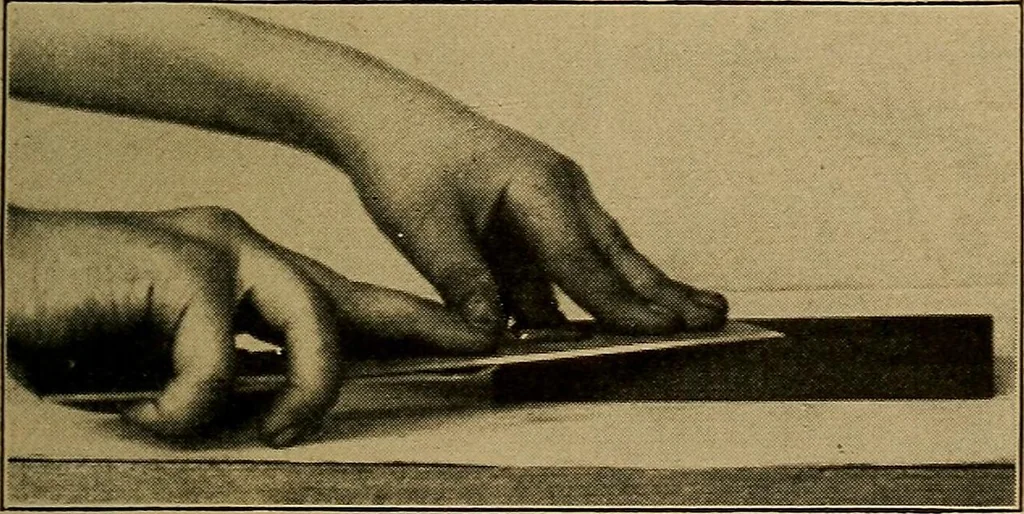

Fig. 110— Sketch of Wire Edge remove the wire edge the first time trying. Be very careful inrubbing theplane bit onthe flat side tohold it downflat on thestone, for ifyou do not, asmall anglewill be madeon this side ofthe edgewhich will do much harm. It will likely turn the edge as indi-cated by… … Fig. Ill -—Removing Wire Edge 90 WOODWORK FOR THE GRADES fvWWXWWXWWWAV^VVWVWTtrr^ Fig. 112—Wire Edge Reversed angle you did in whetting it. This will again turn the edge as indicated by the sketch, Fig. 110. Continue to rub the edge lightly, holding it first as in Fig. 107 and then as in Fig. 112…
