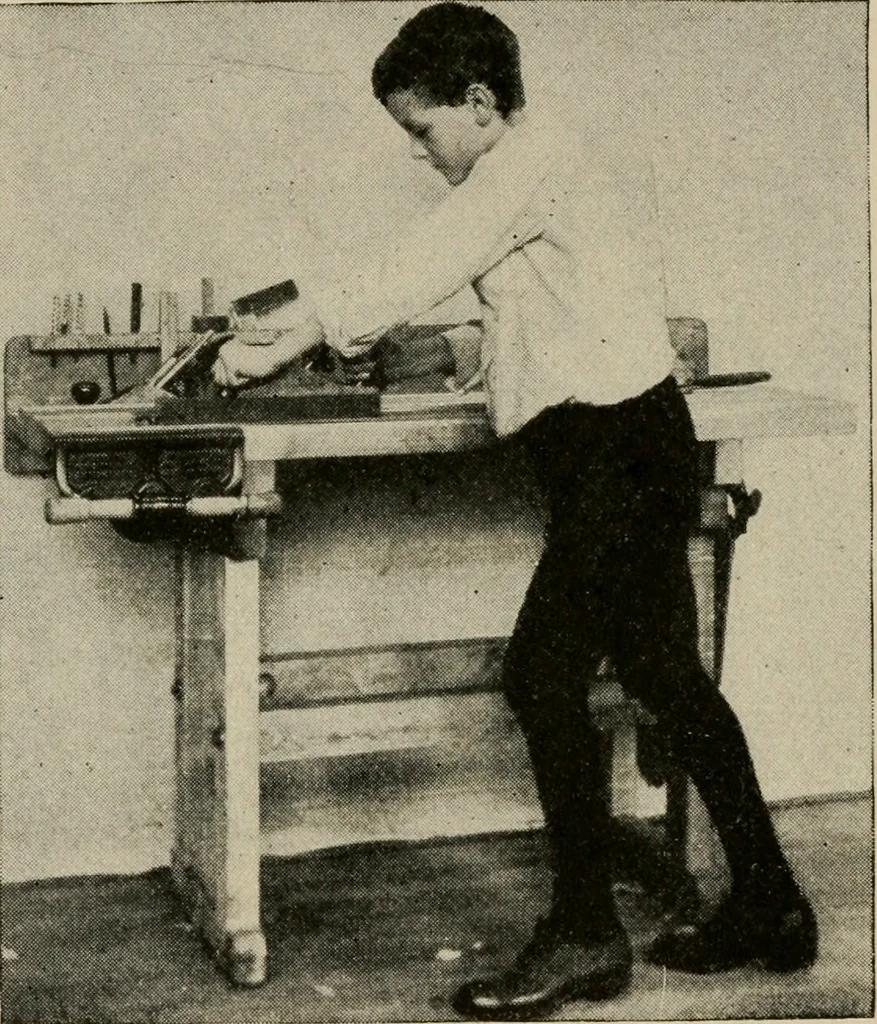

the first work it is better to use only these two.After you have learned to use these properly you can study otherstyles. These two planes differ only in the sizes of the parts. Figs. 7 and 8 showhow to take hold ofthem andFig. 9showshow to place the pieceagainst the bench-stop and the positionof… … 1 Plane Iron. 2 Plane Iron Cap. 3 Plane Iron Screw. 4 Cap. 5 Cap Screw 6 Frog. 7 Y Adjustment. 8 Brass Adjusting- Nut. 9 Lateral Adjustment 10 Frog Screw. 11 Handle. 12 Knob. 13 Handle Bolt and Nut 14 Knob Bolt and Nut. 15 Handle Screw. 16 Bottom.
