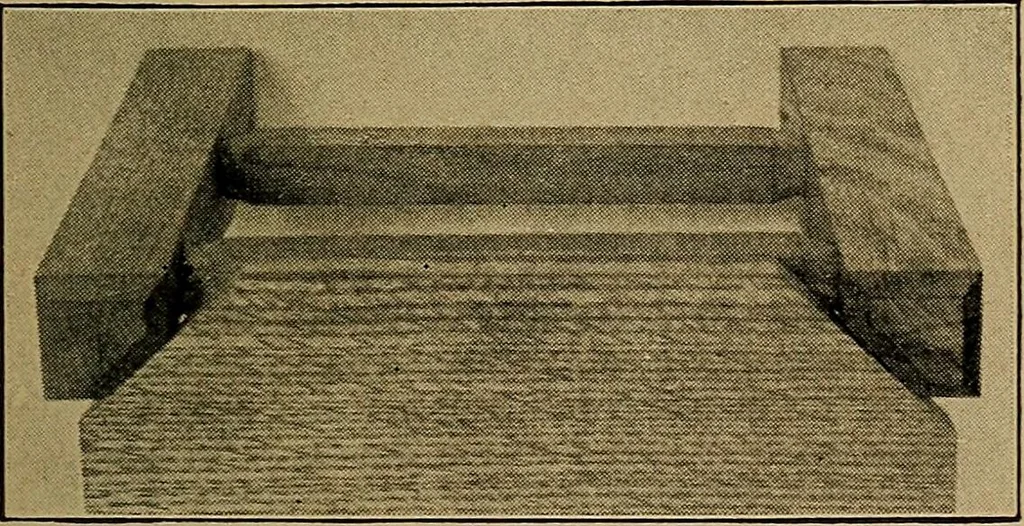

amped there will be less danger of splitting the top ends. As the lower holes at the adjoining sides do not meet, they may both be bored be-fore clamping. It isusually necessary toforce the parts to-gether with clamps.Almost any lightclamp or handscrewwill answer, for theparts should fit so nicely… … Fig. 230—Taboret Top 104 WOODWORK FOR THE GRADES put this taboret together. The top is fastened to the frame by bor-ingholes down through the rails and inserting screwsfrombeneath. A simple modification of this taboret is shown in Fig. 230. The general -JKI --~:~ plan maybe the same as Fig. 228. In…
