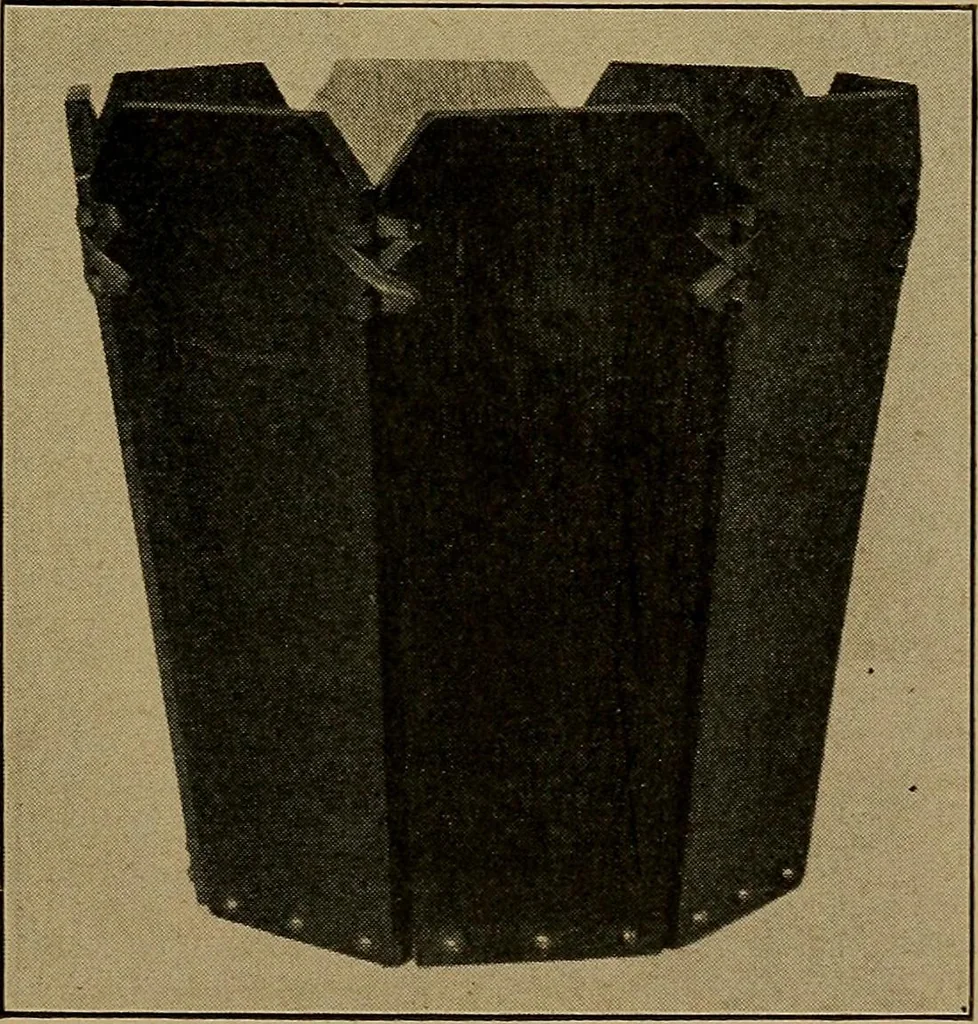

ll the directions for making Fig. 279 and you willhave the information necessary for making the bottom and forgetting out the sides except that required because the sides slant. The drawing,(Fig. 282) gives youthe amount of slantfor each side, andalso shows a try-square with a taperedpiece between… … 204 WOODWORK FOR THE GRADES 12 inches it will slant just )2 inch in 3 inches. Because ofthis relation you can plane a piece about 3 inches long and sawa slit in one or both ends to slip over the trysquare blade as shown in Fig. 243. Youthen measure off on the piece3 inches and make the widthJ inch…
