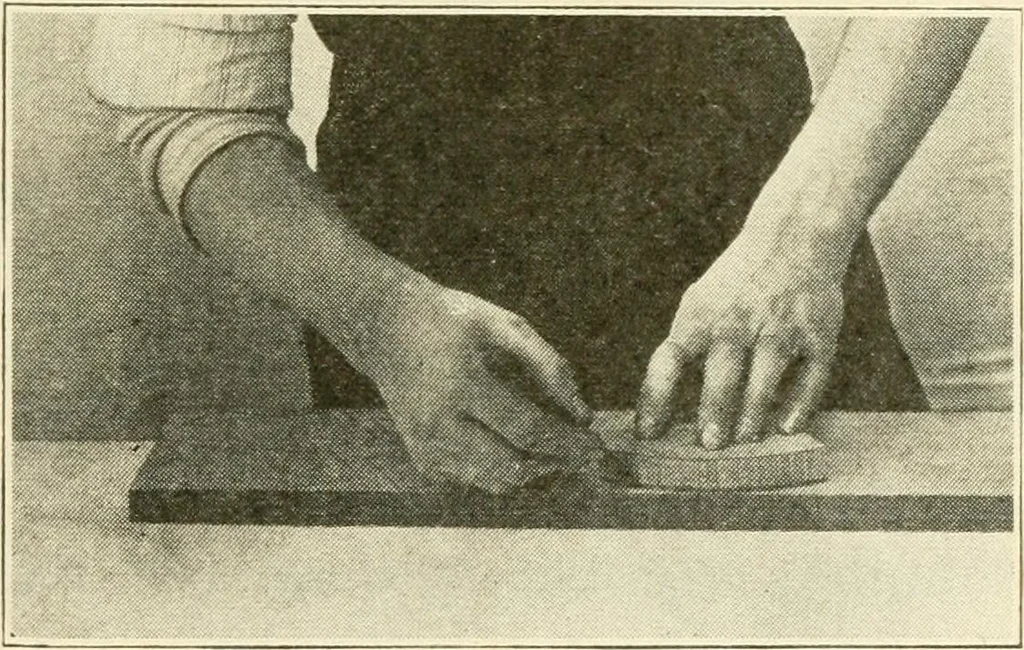

e seg-ment on top. Trimthe joints to fit tight-Iv, or trouble will beexperienced in turn-ing. 60° to 90° seg-ments are the onesmost often used. p^^^ ^^^^ Laying Out Segments. 286. Lap Joint for Six-Arm Pattern.— (1) Plane thestock for the three members of the joint to dimensions asto width and… … 344 WOODWORK FOR SECONDARY SCHOOLS. the width of the piece describe a circle upon the twofaces of each member as in Fig. 552. (5) \N\X.\\ a com-bination square set to 60°, knife four Hnes tangent to the circle just drawn onthe faces, h^ig. 552.(6) With the aid ofFigs. 553 and 554c r o s s c h e c k…
