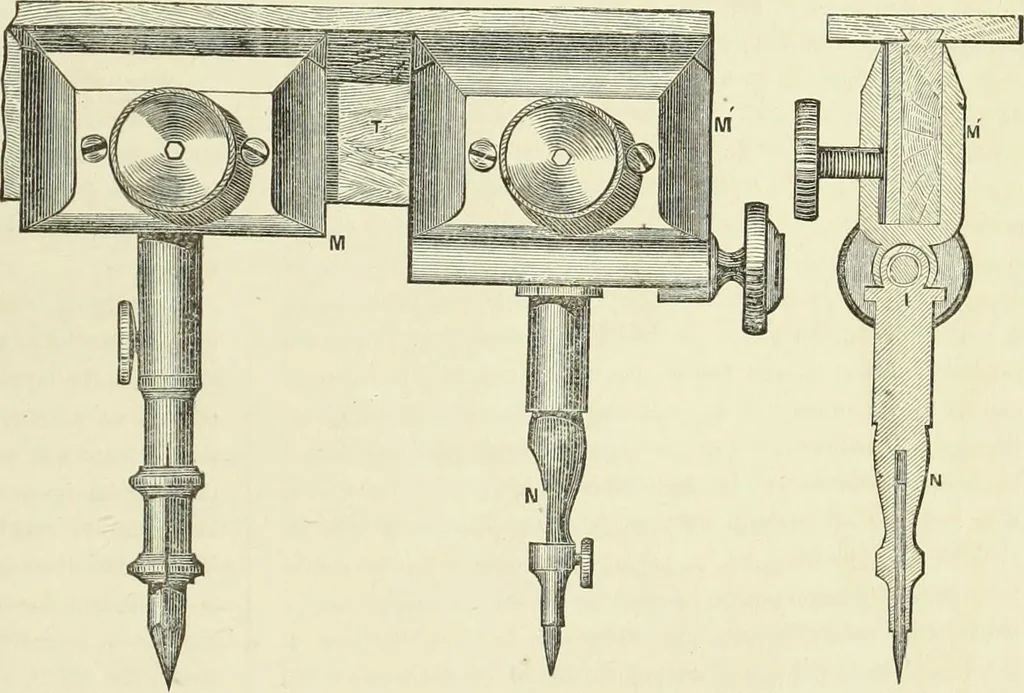

the side ; butto prevent the point of the screw from injuring thebar, a loose plate of metal is interposed next to thebar, as shown in the section, fig. 24. The socket,m, is in a solid piece with its pen, or pencil-holder ; but the centre leg, n, is in a separatepiece from its socket, m, and is… … horizontal screw passage, or nut, to receive the screw spindle,i, which is held by an eye at the end of the socket groove,and is actuated by means of a button on the outside. By 100 THE PRACTICAL DRAUGHTSMANS turning the screw, i, in either direction, the centre leg may boadjusted with great…
