Woodwork for secondary schools; a text-book for high schools and colleges, prevocational and elementary industrial schools (1916)
Griffith, Ira Samuel, 1874-1924 · Peoria, Ill., Manual Arts Press · leaf 39

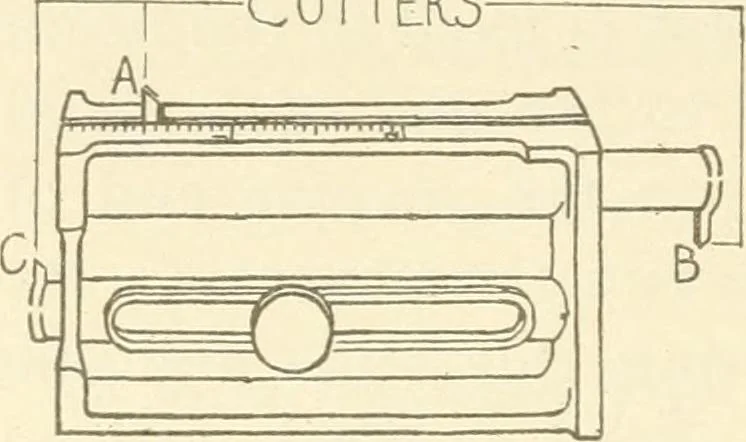

hung, the butt gagecarries the various settings without change and permits the spur to mark in the internalcorners of stop and casing. Cutter A, Fig. 35, marksfrom the rabbet in the jamb;cutter B marks from the edge ofthe door engaged in closing;cutter C marks the thickness ofthe leaf of the… … Fig. 35. Butt Gage.
Woodwork (Manual training)
