Woodwork for secondary schools; a text-book for high schools and colleges, prevocational and elementary industrial schools (1916)
Griffith, Ira Samuel, 1874-1924 · Peoria, Ill., Manual Arts Press · leaf 72

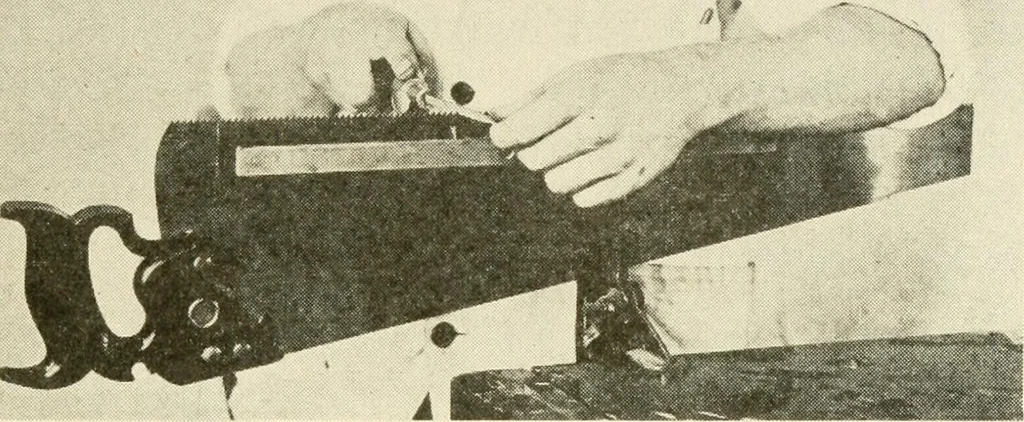

111. Saw in Saw Clamp. each tooth. In going over the teeth from the first side, alittle of the facet made on the tooth tops by top-jointingshould be left. In filing from the second side this willdisappear in the main. Any teeth which still retain the TOOLS AND PROCESSES. 67 facets may be touched up… … Fig. 112. Filing a Rip-saw edge to bring it t(^ a sharp arris. Where teeth vary insize, a change in the balance of pressure is necessary toreduce the large and increase the size of the small, adjacenttooth. Tf the saw is tobe used for rip-ping, file straightacross holding thefile so that it…
Woodwork (Manual training)
