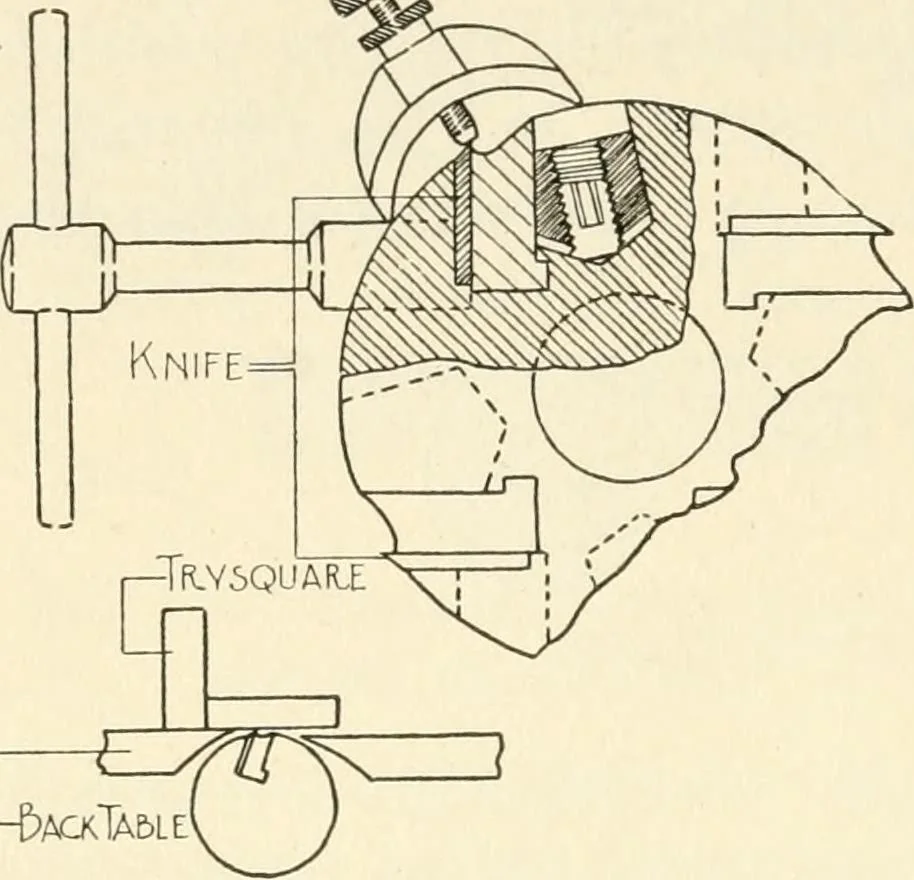

ence. In setting knives in ahead it is necessary forsmooth work that the cut-ting edges shall be uni-formly set with referenceto their circumferentialmove m e n t. Fig. 141shows two methods oftesting knives for properprojection. In addition toFig. 141. Testing Jointer Knives this, the latest types… … -^JACKlAbLE ^^pFEED For. Emek-V MERV that it may be moved alongthe knives as they are revolvedat a slow speed. This attach-ment is also used in securingthe first setting of the knives.The two steel rolls. Fig. 143,indicate the proper setting, theknife edges being placed so thatthey just touch…
