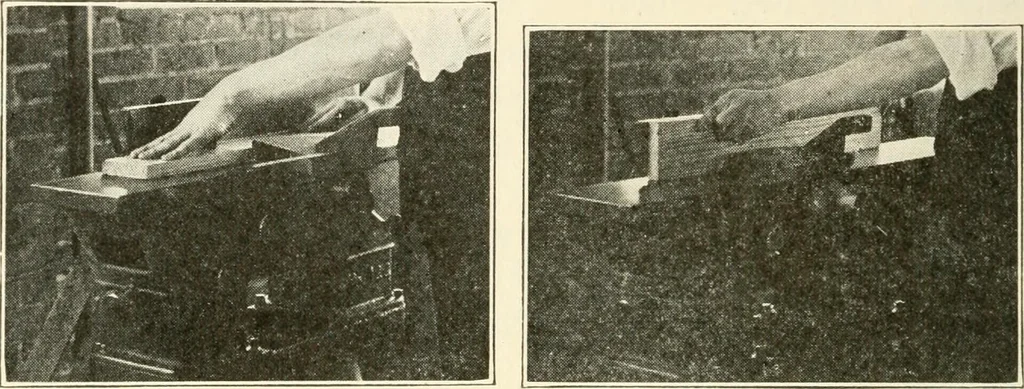

Fig. 145. Depth Gage for Jointer. 86 WOODWORK FOR SECONDARY SCHOOLS. indicates the depth of cut, x, Fig. 135. Some machineshave depth gage or thickness scale fastened to the fence,Fig. 145. AVhen a piece of stock is placed on the in-feed tableto be surfaced it is usually rough and irregular and… … Fig. 146. Jointing a Surface. Fig. 147. Jointing an Edge. table. It is very essential that the stock be held downtightly on this rear table so that the remainder of thecutting may give a surface which shall lie in the sameplane as that first cut. Just as soon as the stock has agood bearing on the…
