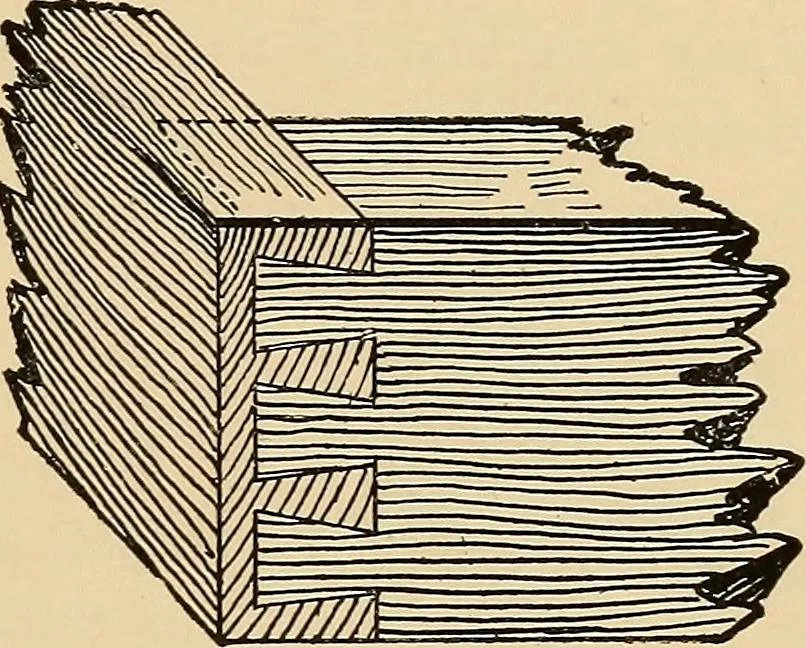

Fig. S12. Fig. 513. piece A. Lay off the oblique lines ec on both sides of the piece.With the back-saw cut by these oblique lines (<;y) to the lines ab.Fasten the piece in the vise, end upward, for the sawing. Withthe chisel, cut out the parts to be removed (marked w), as in cut-ting a mortise… … Fig. 514. the piece A on the end of the piece B in the way it is finally togo, so that the pins just cut will rest exactly in position acrossthe end of the piece B. Mark around the pins, forming theoblique lines fg, from the ends ofwhich square the lines gh on bothsides of the piece. Remove thewood…
