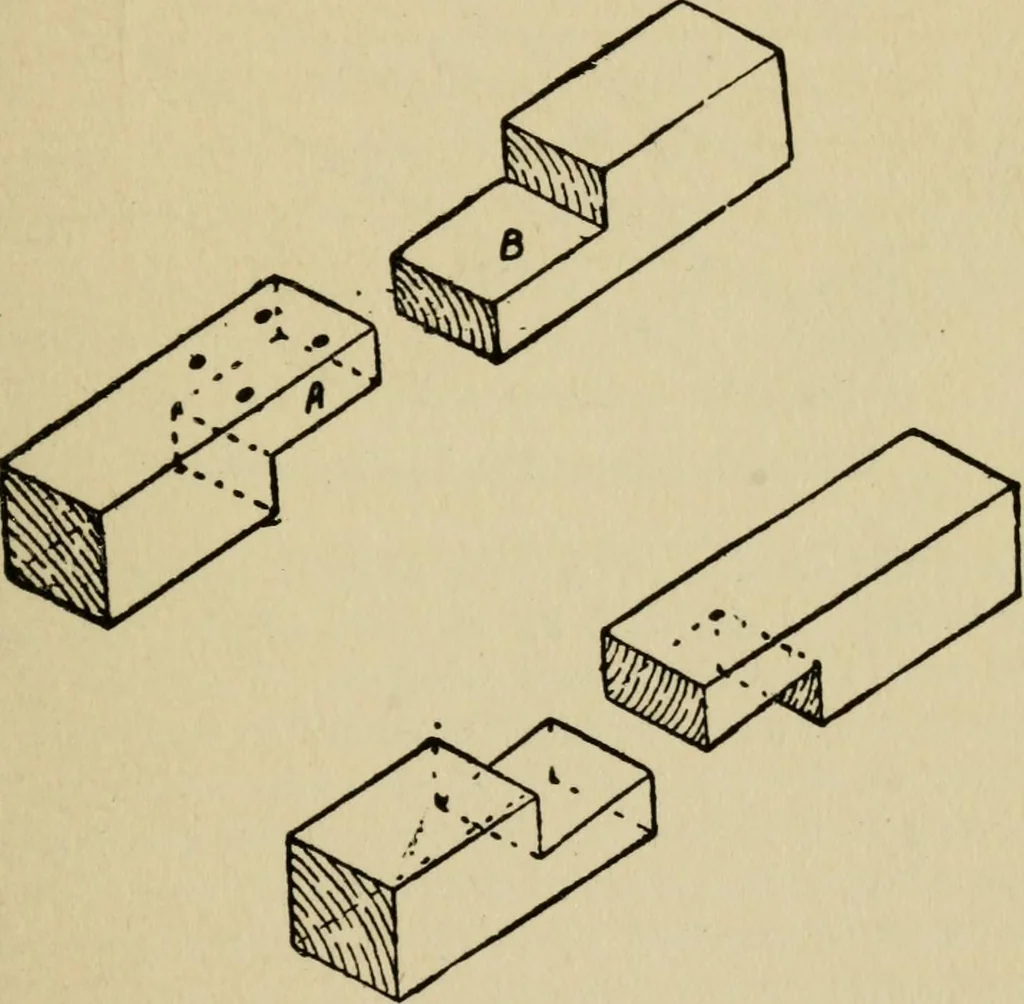

199, 198, and 197 respectively. The method of working is: Plane up, mark out, boreholes, countersink, glue dowels, and complete joints. 88 THE SCARF JOINT THE method known as scarfing is used for thejoining of timber in the direction of its length,enabling the workman to produce a jomt with asmooth… … Fig. 216.—Half-LapScarf Joint. Fig. 217.—DovetailedScarf Joint. depth of the beam, and of equal length to the requiredscarf. 89 Joints in Woodwork The two pieces before they are placed together form ajoint as shown at Fig. 216, the projecting part A fittinginto the recessed portion marked B and the…
