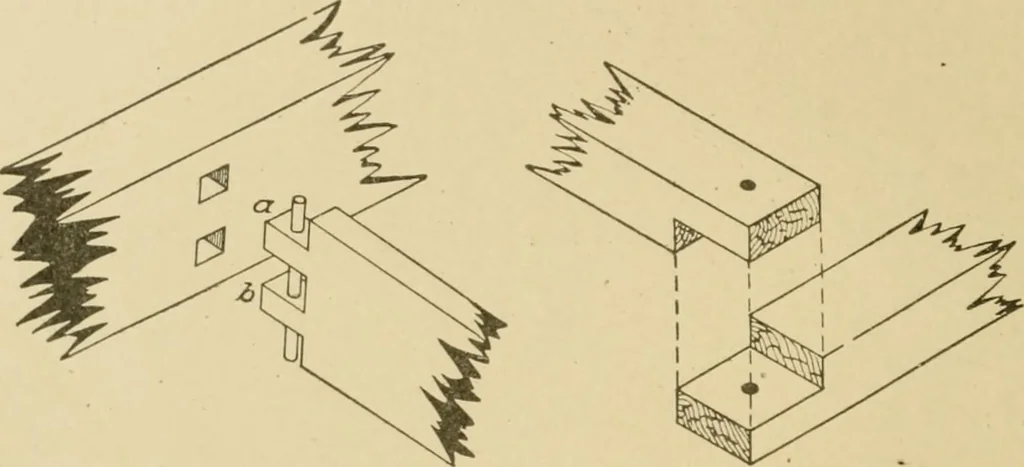

Securing Tenon. 41 84 CARPENTRY distance back from tlie tenon unci a nut c is placed in it, while abolt l is passed through a hole bored lengthwise in tlie header toreceive it. The bolt passes through the nut, which may be screwedup tight, thus drawing the pieces closely together and making… … Fig. 36. Double Teuuu Joint. Fig. 37. Halved Joint. The Double Tenon Joint. Fig. 36 shows a form of tenon jointcalled the double tenon joint, which is not very extensively usedat the present time but which has some advantages. As may bereadily seen, there are two small tenons a and h through which…
