Woodwork joints; how they are set out, how made and where used; with four hundred and thirty illustrations and a complete index of eleven hundred references (1921)
Fairham, William · Philadelphia and London, J. B. Lippincott company · leaf 106

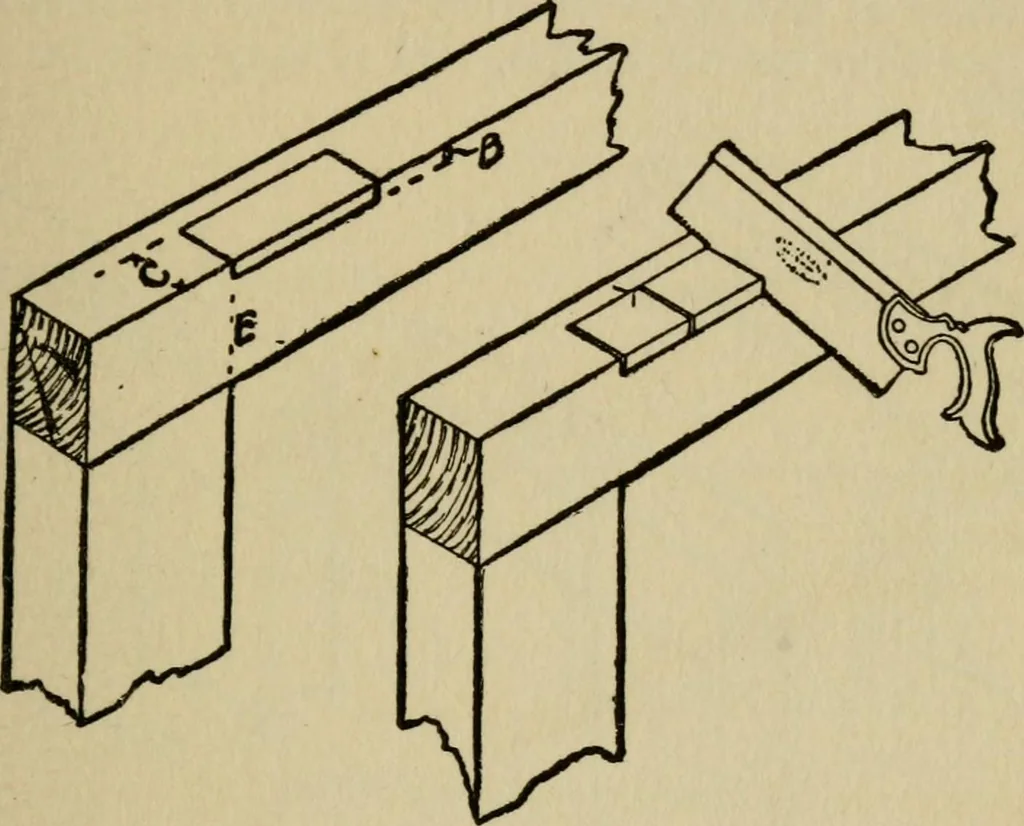

examplethat every reader may inspect for himself is the curvedside of a railway carriage body and railway carriage door,where he will notice that a specially wide hinge has tobe used at the bottom of the door to give the necessary 94 The Hinged Joint alignment. Hinges fixed on work with their… … Fig. 226.—^Marking. Fig. 227.—Cutting the Recesa. set so that the point of the marker is exactly to the centreof the pivot-pin. This distance we will call C Now turnto Fig. 226. The distance C has been gauged from theface side of the frame. The gauge is then set to the thick-ness of the hinge at…
Woodwork · Carpentry
