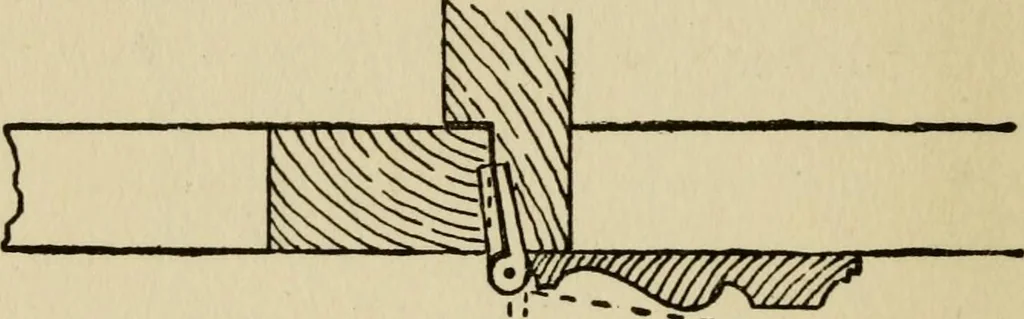

Joints in Woodwork pin of the hinge is let in level with the face of the door.This will allow the door to open as shown by the dottedline, and it will not clear the architrave moulding. HINGEING TO CLEAR THE ARCHITRAVE MOULD. Fig- 253 indicates the position of the hinge fixed so asto allow the door… … . Fig. 254.—Close Joint Hingeing. To determine the position of the centre pin of the hingethe following rule is observed. The centre of the pivot pinof the hinge must be half the distance between the face ofthe door, when closed, and the outside of the architravemoulding. CLOSE JOINT HINGEING. The…
