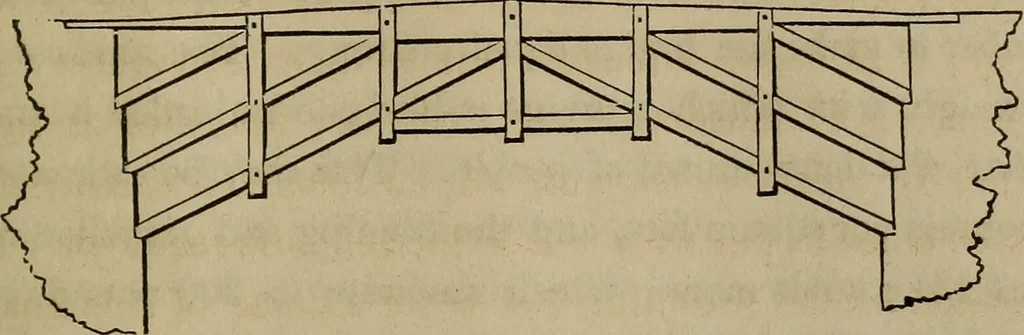

Fig. 252. 400.—Fig. 253 exhibits a wooden bridge without a tie-beam.Where staunch buttresses can be obtained, this method may berecommended; but if there is any doubt of their stability, it FRAMING. 293 … Fig. 253. should not be attempted, as it is evident that such a system olframing is capable of a tremendous lateral thrust.
