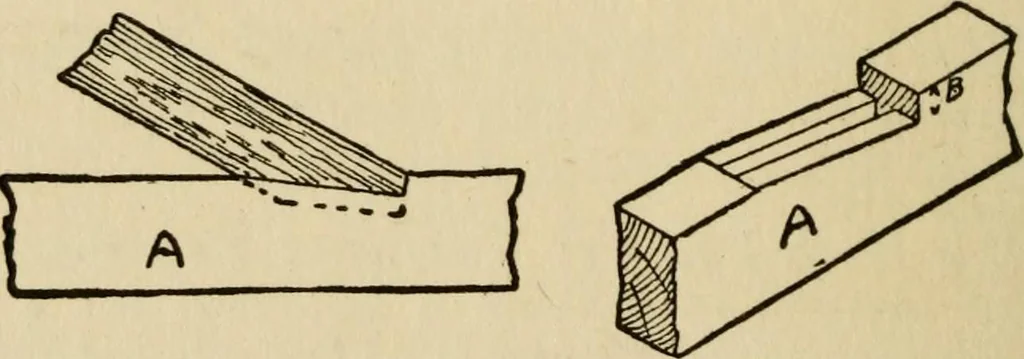

Fig. 363.—^Notched Jointon Rebated Joist. Fig. 364.—Roll-top DeskJoint. and it should be noted that the depth of the cut portion Bshould not be more than one-fourth of the total width ofthe tie-beam. Birdsmouth Joints.—Fig. 366 is a birdsmouth joint, … Fig. 365.—Rafter and Tie Beam Joint. as used when a spar fits on the wall plate, a simple jointwhich can be readily made by the handsaw. A nail isshown securing it in position. Fig. 367 shows the birdsmouth joint where the sparruns over the outside of the wall plate, thus allowing afixing for an…
