Woodwork joints; how they are set out, how made and where used; with four hundred and thirty illustrations and a complete index of eleven hundred references (1921)
Fairham, William · Philadelphia and London, J. B. Lippincott company · leaf 176

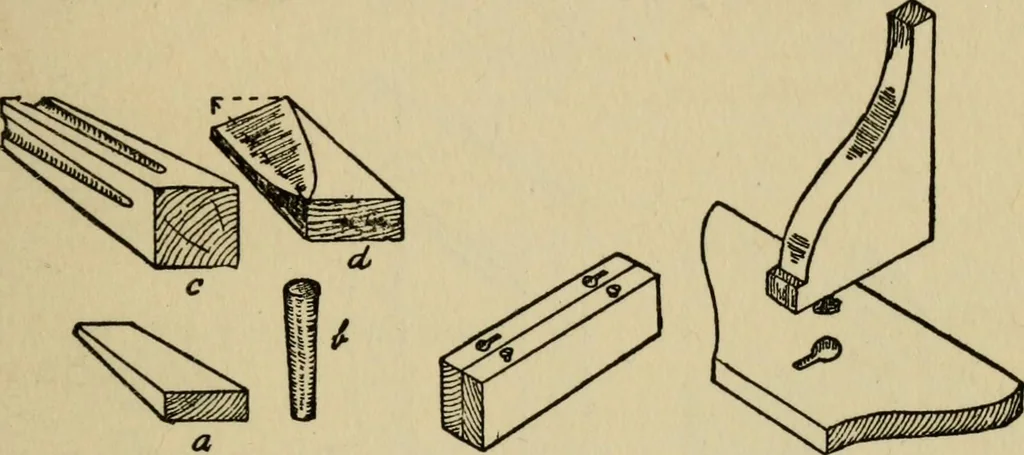

le iron by means of wooden buttons isshown at Fig. 371, B. The advantage of this manner of 164 Miscellaneous Joints securing a wide board is that it allows the board to contractor expand according to the alterations in temperature.Perhaps one of the most familiar methods of buttoningis shown at… … Fig. 374.—Wall Plugs, Fig. 375. Fig. 376.--Slot Four Varieties. Slot Screwing. Screwing a Bracket. Dovetail Plates for Bed Joints.—Fig. 373 illustratesthe fixing of a wooden bed side to the bed foot by meansof cast-iron plates, which are fitted as shown. Theseplates may be obtained from any of the…
