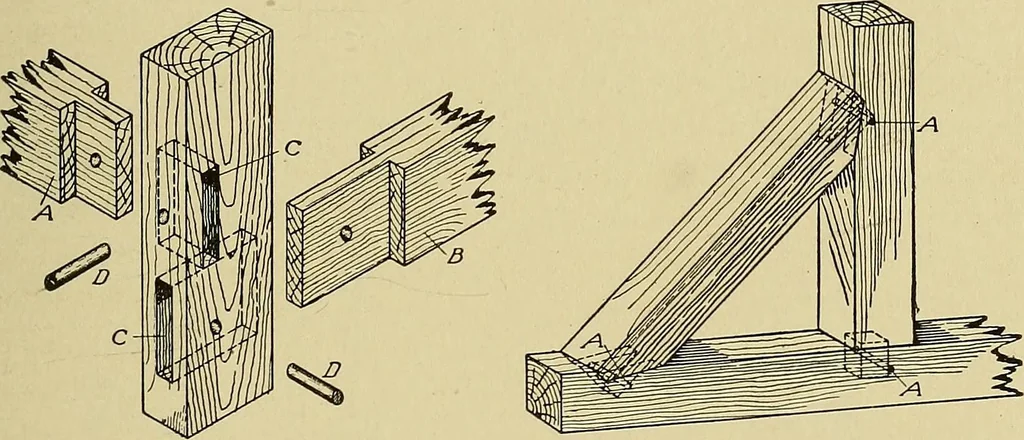

rner post to fit a mortise cut in the sill, and mortises CC,Fig. 101, are cut in the post at the proper level to receive the tenonscut in the girts. Holes must also be bored to receive the pins DDwhich fasten these members to the post. The braces are often only nailed in place, but it is much… … Fig. 101. Details of Tenon Joints forCorners Fig. 102. Corner Bracing with Mortise-and-Tenon Joints In the case of a balloon frame no mortises need be cut in theposts for the girts or braces, as they are omitted in this frame; butthe post must be notched instead, as shown in Fig. 103, to receivethe…
