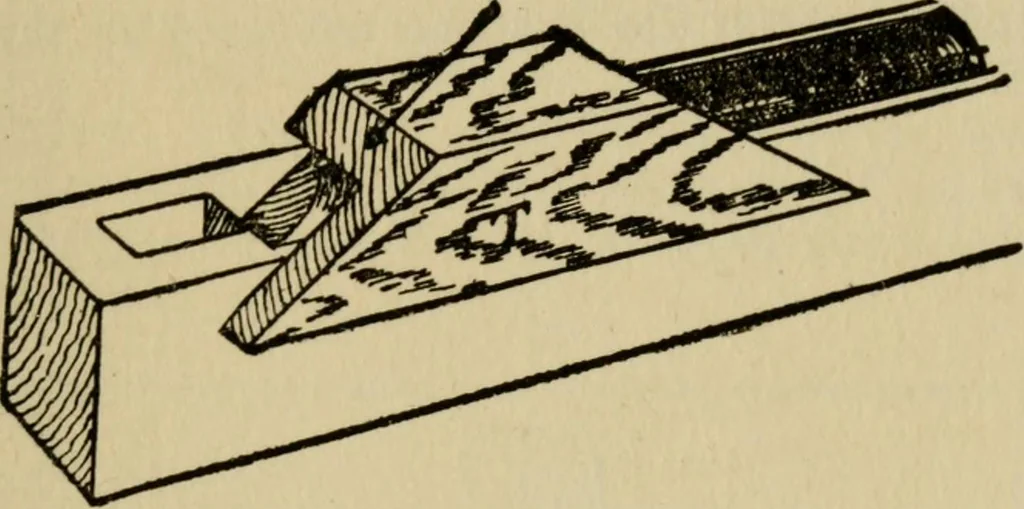

ct at thecorner D, it clearly shows that a straight mitre will not cutall the points of intersection. A curved Une will cut all the 184 The Mitred Joint intersections, and a template made of cardboard, sheetzinc, or veneer, should be made to this shape. At the left-hand side the geometrical setting… … Fig. 407.—Template for Mitreing. mitre place the point of the compasses and strike out acircle as shown ; with the same radius place the compasspoint on B—that is the inside point of the mitre, and cut thecircle on the right and left with the small arcs shown at aa.With the same radius put the…
