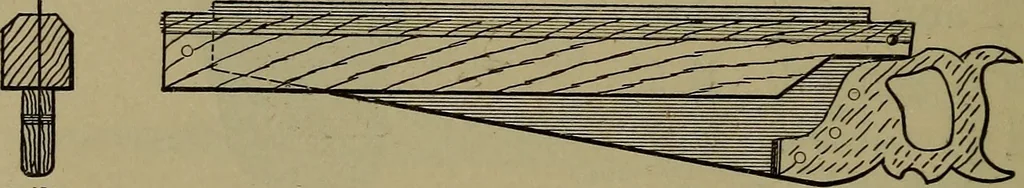

shown in the engraving. Since it must act on only onetooth at a time, the end X is wedge-shaped. 38 BENCH WORK IN WOOD. driven against the edge of the tooth, as shown by Fig. 77 ; byusing one opening the center of the tooth is forced back, asat H\ and by use of the other opening the points are… … SIDE. PLAN. the filing process. Carpenters frequently make for themselvesclamps similar to that represented by Fig. 78. It consists oftwo pieces of hard wood joined face to face by two screws(one near each end), by means of which the clamp may beiTig. ro fastened rigidly to the blade of the saw. It…
