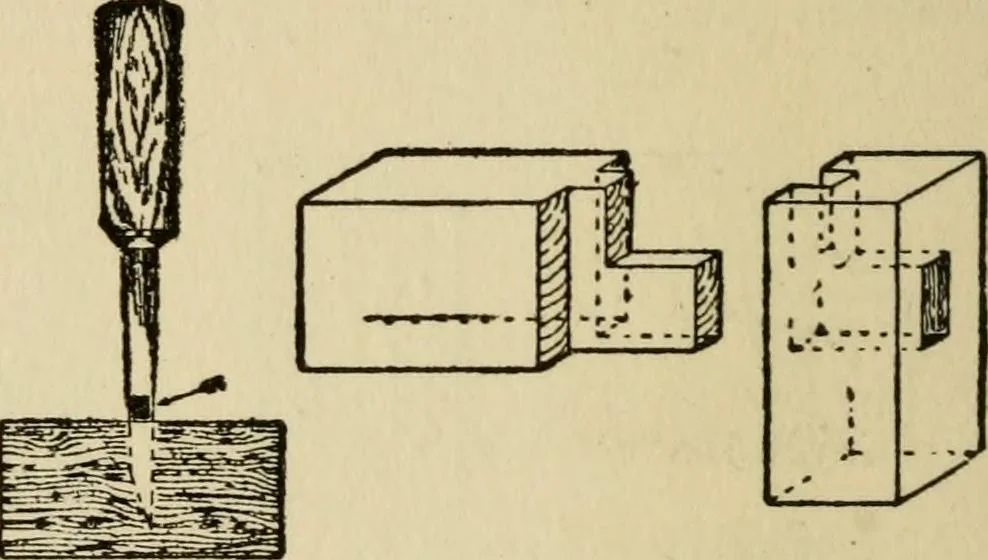

atchboarding, and allows the work to 53 Joints in Woodwork finish level at the back when the boarding has been applied(see plan). Stub or Stump Tenon (Fig. 126)—also occasionallycalled a joggle tenon. The illustration shows a tenon asused in the interior of a frame. The tenon is not allowedto run… … Fig. 128. Fig. 129. Gauging. Haunched Tenon Joint. A good workshop method of gauging the depth of themortise for a stub tenon is shown in Fig. 128 ; a piece ofgummed stamp paper is stuck on the side of the mortisechisel, indicating the desired depth of the mortise. Thisgreatly facilitates the work,…
