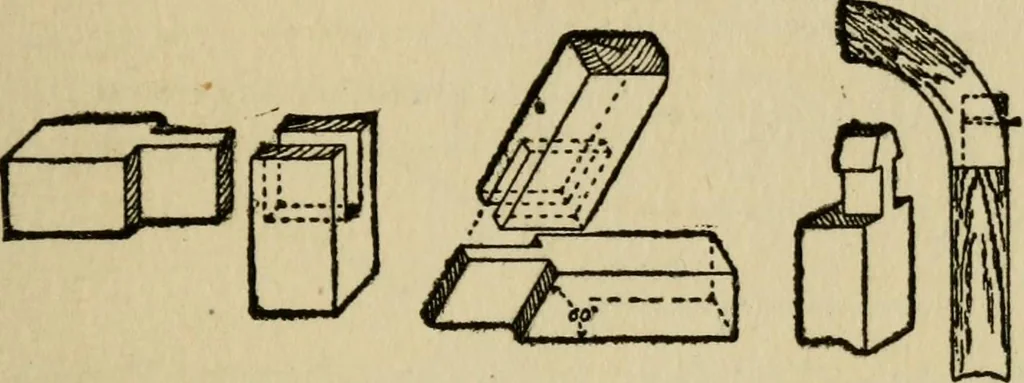

horticultural buildings, etc. If the lower rail 64 The Mortise and Tenon Joint be moulded with the same members as the sash bar, theend of the sash bar will have to be scribed on to it tomake a fit. Tenon with Tongued and Grooved Shoulders (Fig. 163).—The object of the tongues and grooves here are… … % Fig. 166.—Open Fig. 167.—Open Fig. 168.—HammerSlot Mortise. Slot Mortise Head Tenon, at 60° angle. Table Framing.—^Fig. 164 indicates the framing ofa rail to a dining-table leg. In cases similar to this thetenons run into the leg and almost touch each other.They are therefore mitred on the end as…
