Fox, William Paul. [from old catalog] · Chicago, Ill., Fox brothers · leaf 30

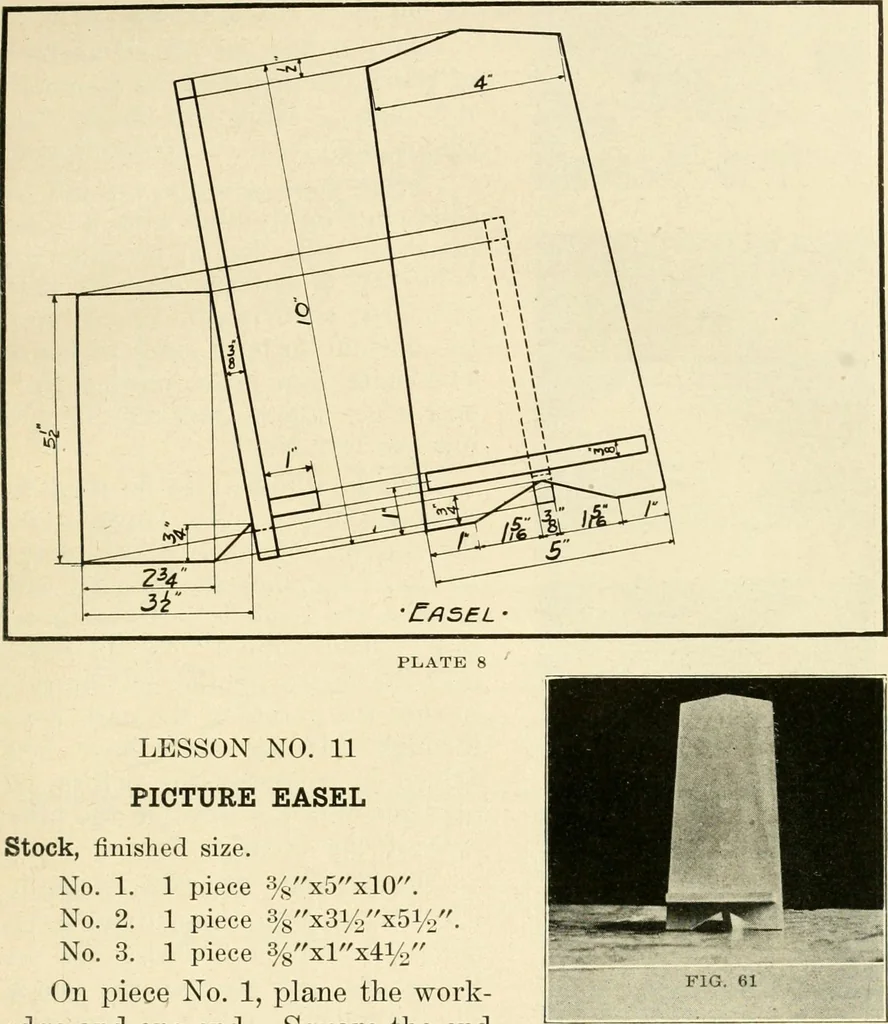

Summaey.—These ten lessonshave illustrated the use of rip andcross cut saws, the laying out andsawing of boards; the use of thetry sqfuare; the use and adjustmentof the plane; the four methods ofsquaring a board; the use of theback-saw; the trueing of edges atany angle; the use of a hand gim-let… … PICTURE EASEL Stock, finished size. No. 1. 1 piece %x5xl0. No. 2. 1 piece %x3y2x5y2. No. 3. 1 piece %xlx4y2On piece No. 1, plane the work-edge and one end. Square the endwith the working edge. Use thisend for the bottom. Lay out de-sign as shown on your drawing,Fig. 62. Cut design with back…
Woodwork · Mechanical drawing
