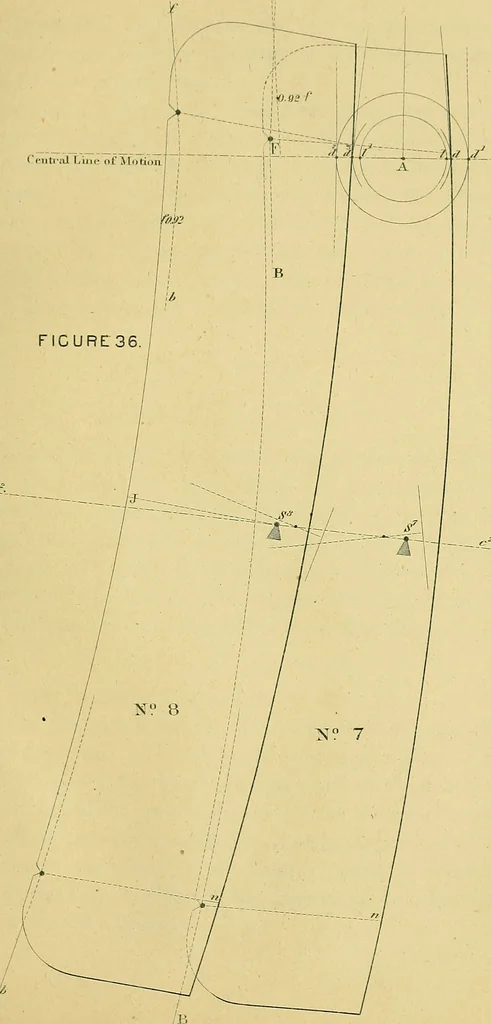

ate thereto, we obtain the positions Nos. 9 and 10 * If the ratio of crank to connecting rod had been that of 1 : 5 or 6, the linesc2 c2, c3 c3 would have had a greater inclination to the central line of motion,thereby removing li and hs to 7i4 and 7;5, and depressing the shaft to some… … MODIFICATIONS. 97 (Fig. 37) and are able to mark the extreme points Q, p, ofthe rocker arc which are separated by a horizontal distanceequal to the extreme travel. For position JSTo. 8 the fixed j)oint m on the templateattains its maximum elevation above the link arc, and now,at the extreme throw,…
