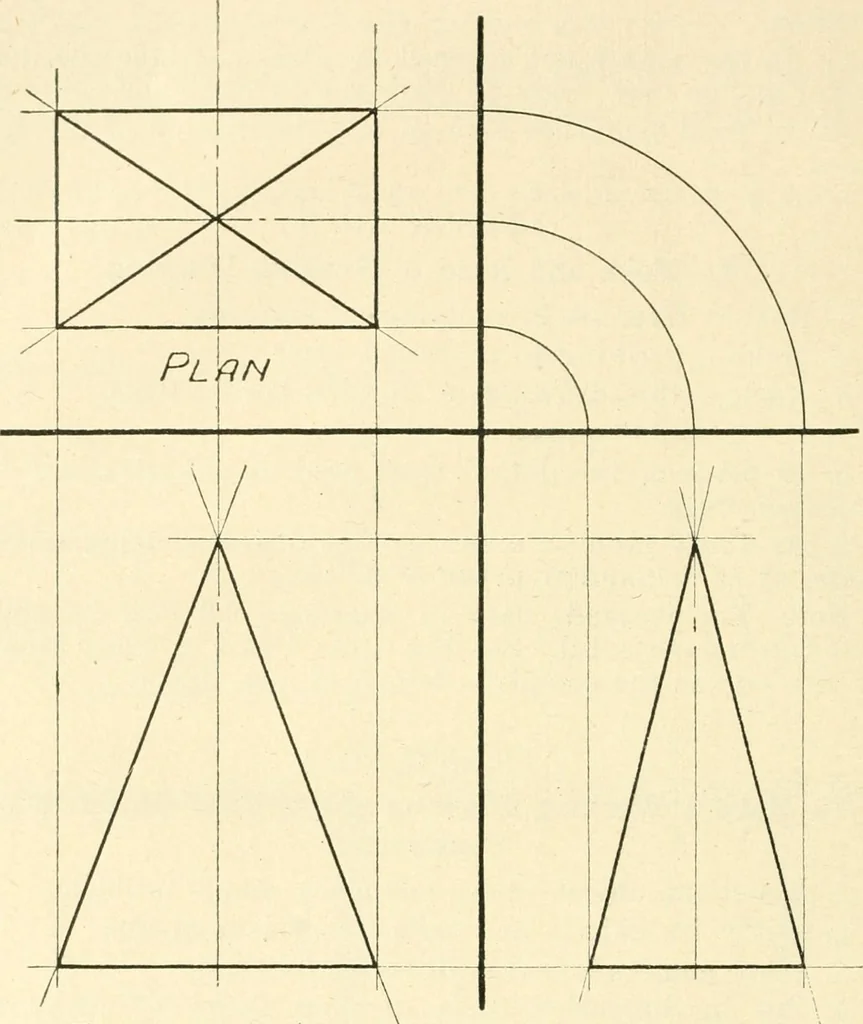

ails and take its measurements. 3. Then make a working drawing full size. 4. Put in dimension lines, keeping them *4 away fromobject. 5. The axes of projection may now be omitted. Note: Have many similar exercises to develop facility inboth reading and making drawings. To older pupils thereshould… … Front Elev Ea/o Elev. FIG. 159 Projection of a rectangular pyramid showing the axes of projection. — 82 —
