Wright aircraft engines; complete instructions for their installation, operation and maintenance; (1921)
Wright Aeronautical Corporation, Cautley, John R., ed · Paterson, N.J., Wright aeronautical corporation · leaf 68

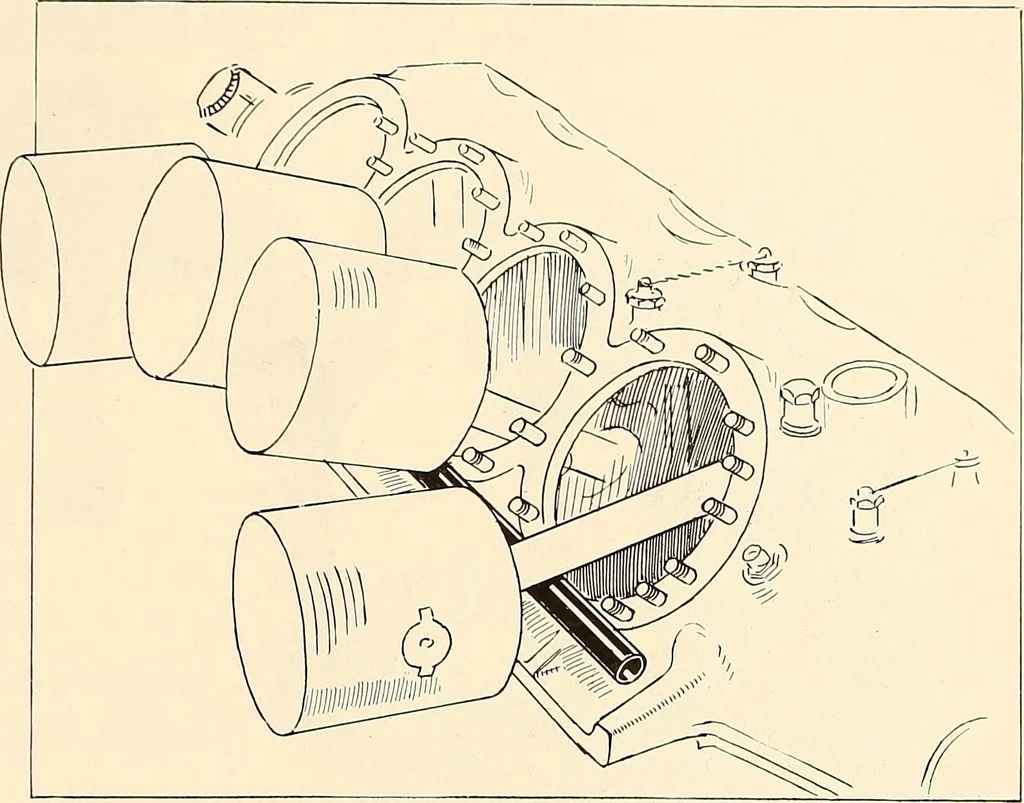

st pins have to be tapped out byusing a drift. It is best to have two menfor this job, one to drive and the other tohold the piston. If the job has to bedone by one man he should hold the connecting rod asclose up to the pistons as possible with the left handand tap out the pin with the other. It… … Use of copper tube to protect pistons from injury by cylinder studs If the work is done in a cold shop the pistons shouldbe heated before attempting to drive out the wrist pins.For removal of older model pistons sec page _//. Second Stage This completes the first stage of the disassembly.…
