Wright aircraft engines; complete instructions for their installation, operation and maintenance; (1921)
Wright Aeronautical Corporation, Cautley, John R., ed · Paterson, N.J., Wright aeronautical corporation · leaf 78

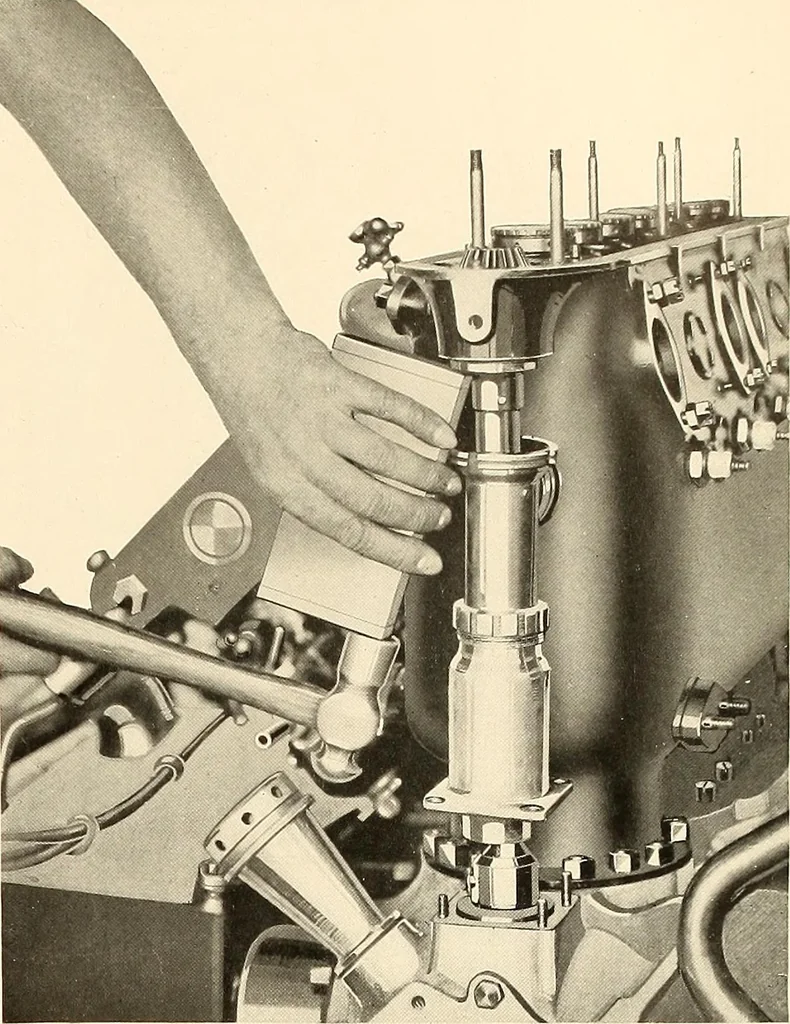

derable stoning can be done. Valve spring washers sometimes strike against thetop ends of the valve guides and are damaged. Examinefor this and replace washers if necessary. If new guidesare fitted check height of guides to make sure that thereis plenty of clearance under the washer when the… … Driving out upper vertical shaft bearing, using block of woodfaced with fiber assembly. To assemble, place all valves in position withcylinder block in holding fixture. Insert blocks of wooddescribed on page 49 to hold valves in place and turnover cylinders. Attach the valve lifting fixture…
