Wright aircraft engines; complete instructions for their installation, operation and maintenance; (1921)
Wright Aeronautical Corporation, Cautley, John R., ed · Paterson, N.J., Wright aeronautical corporation · leaf 81

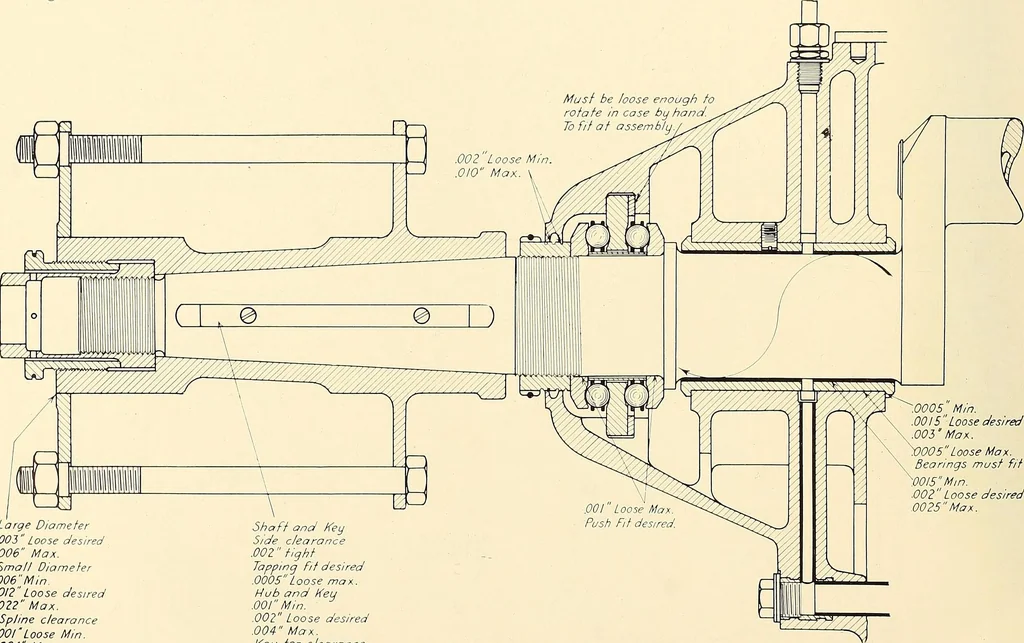

nce behind it. Tool W. A. 6 ismade specially for this job, but any puller of requisitespan can be used by grinding down the ends till they willslip behind the bearing. The bearing should be a lightdrive fit on the crankshaft and if a new bearing is tightthe shaft should be lapped down till the… … 0005u Min. 0015Loose desired .003 MaK. \>005Loose Max.Bearings must fit WIS Min. ■002Loose desired0025 Man. Large Diameter.003 Loose desired.006 Max.Smalt Diameter006Min .012Loose desired.022 Max.Spline clearance.001Loose Min..004 Max.At least two splines musttouch and drive. Shaft and KeySide…
