Wright aircraft engines; complete instructions for their installation, operation and maintenance; (1921)
Wright Aeronautical Corporation, Cautley, John R., ed · Paterson, N.J., Wright aeronautical corporation · leaf 91

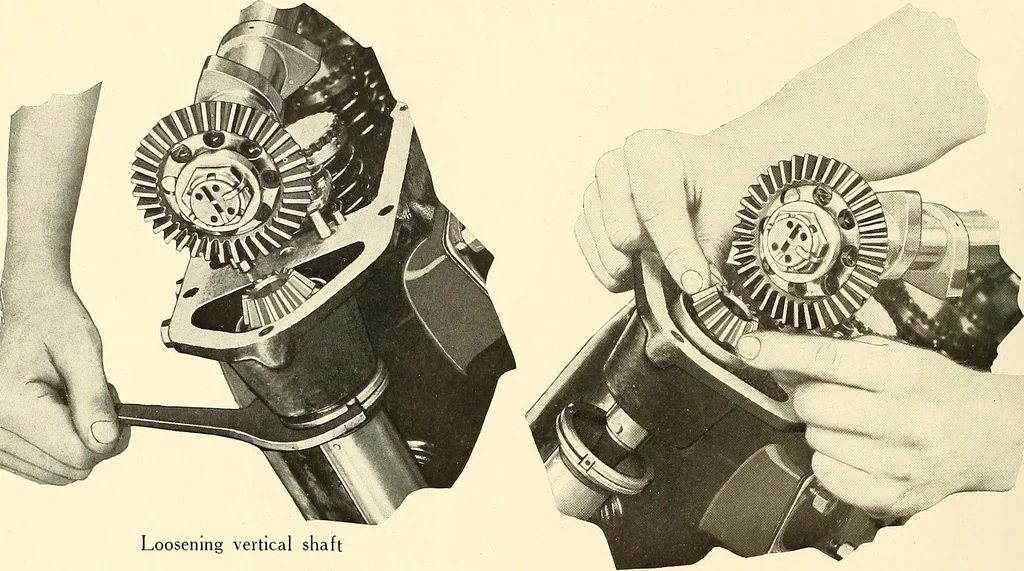

Timing device used on Models E-2 and H-3 engines. Left view shows coupling opened and right view closed in running position. Caution—When adjusting the timing device on vertical shaft always slip the housing down so you may see that the vertical coupling is in proper mesh 68 WRIGHT AERONAUTICAL… … Loosening vertical shaft Giving vertical shaft half turn
