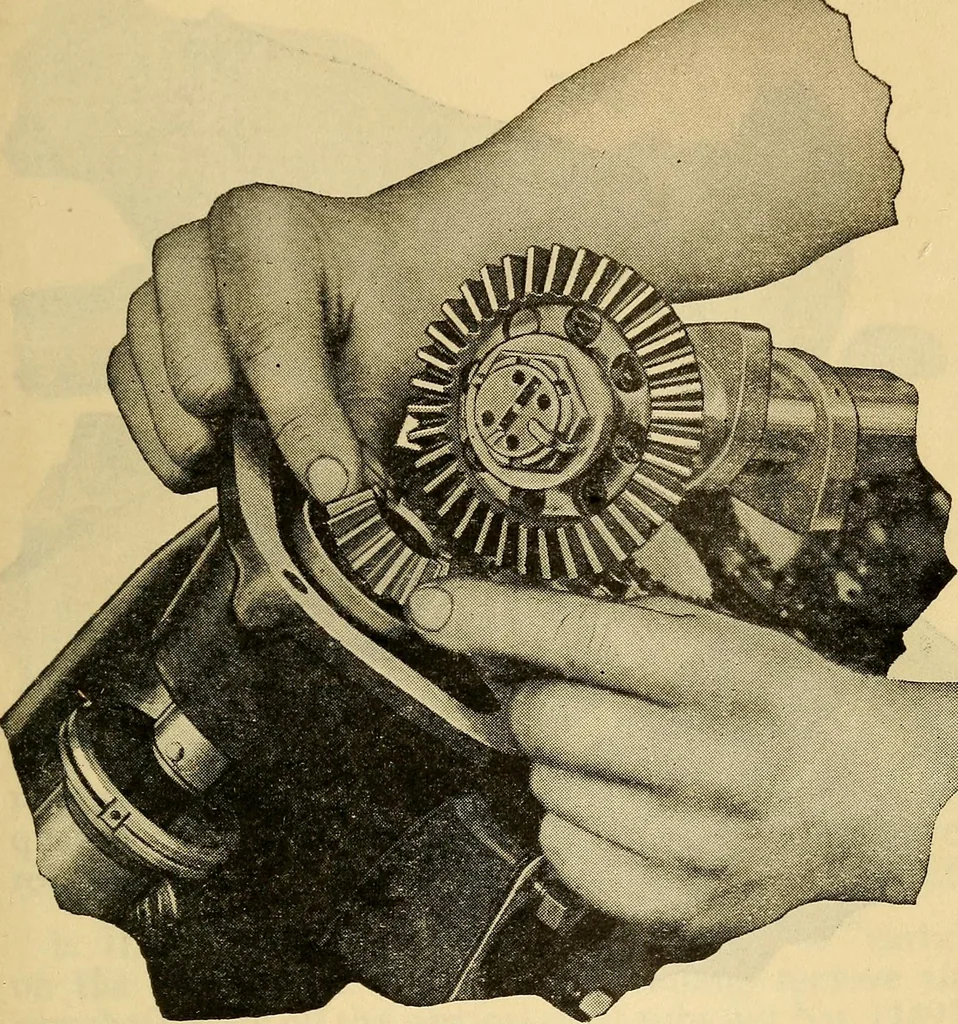

c is 47.1 m/m or 15° before top center it is said toopen early. If it does not tighten until the disc is 15.7 m/m or5° before top center it is said to open late. Any one of these variations will cause loss of power,perhaps over-heating and countless other troubles. If the timing is late or early as… … Plate 31Adjusting the vertical shaft after it has been raised. Provisions for Adjusting the Camshaft. Special provisions have been made for correctingthe timing in the design of the camshaft drive. Theupper vertical shaft is driven from the lower vertical shaftby a screw-driver type of joint, the…
