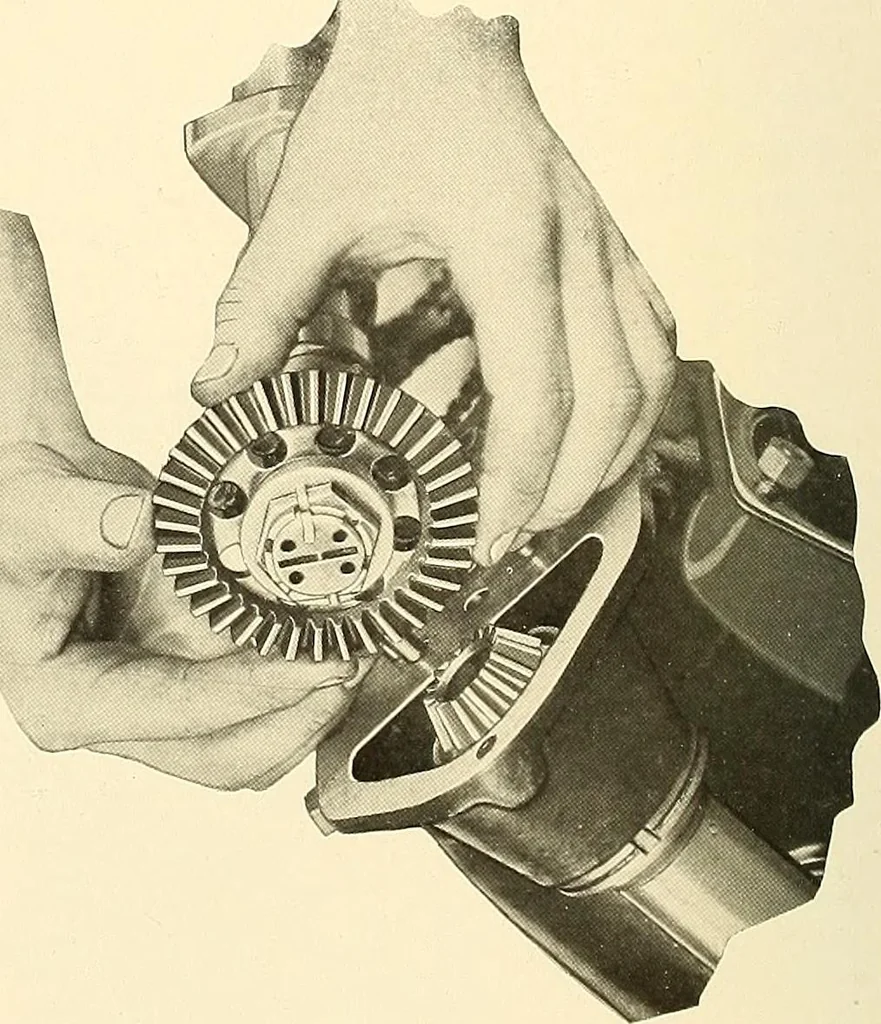

aft is obviously far out ofcorrect position, loosen its bearings, lift it up and set itas closely as possible. If set to the nearest tooth of thecamshaft gear it will probably not be very far out. Nowtighten down the camshaft bearings and turn the cranktill the cam contacts with the tappet, having… … Changing meshing of camshaft gear Now refer to the disk and read off the number ofcrankshaft degrees the shaft is out of time. Note dozvnthis number and also whether the camshaft is early or late. Explanation of Timing Process There are 36 teeth in the camshaft gear, so each toothcorresponds to 10…
