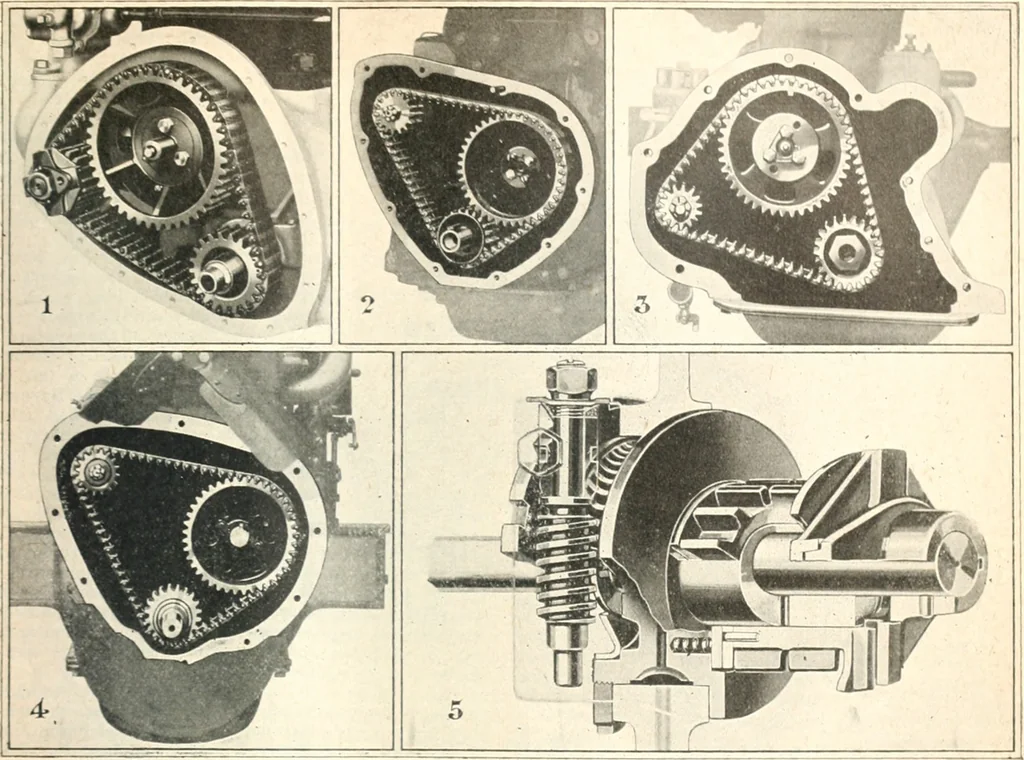

bearing surface on both sides. Aswill be noted from the drawing herewith, the use of theautomatic idler affords increased bearing contact on theadjacent sprocket. A very interesting and novel type of layout is thetwo-step chain front end drive which has been worked outby the Link-Belt Co. for the… … Fig. 1—\ew front end chain drive on Hudson. This is a triangular Morste installation with eccentricadjustment. Fig. 2—Front end chain drive installation on the Continental 6Y engine. Fig. 3—Chain frontend drive on the Jordan car. Fig. 4—A triangular front end chain layout has been adopted for the…
