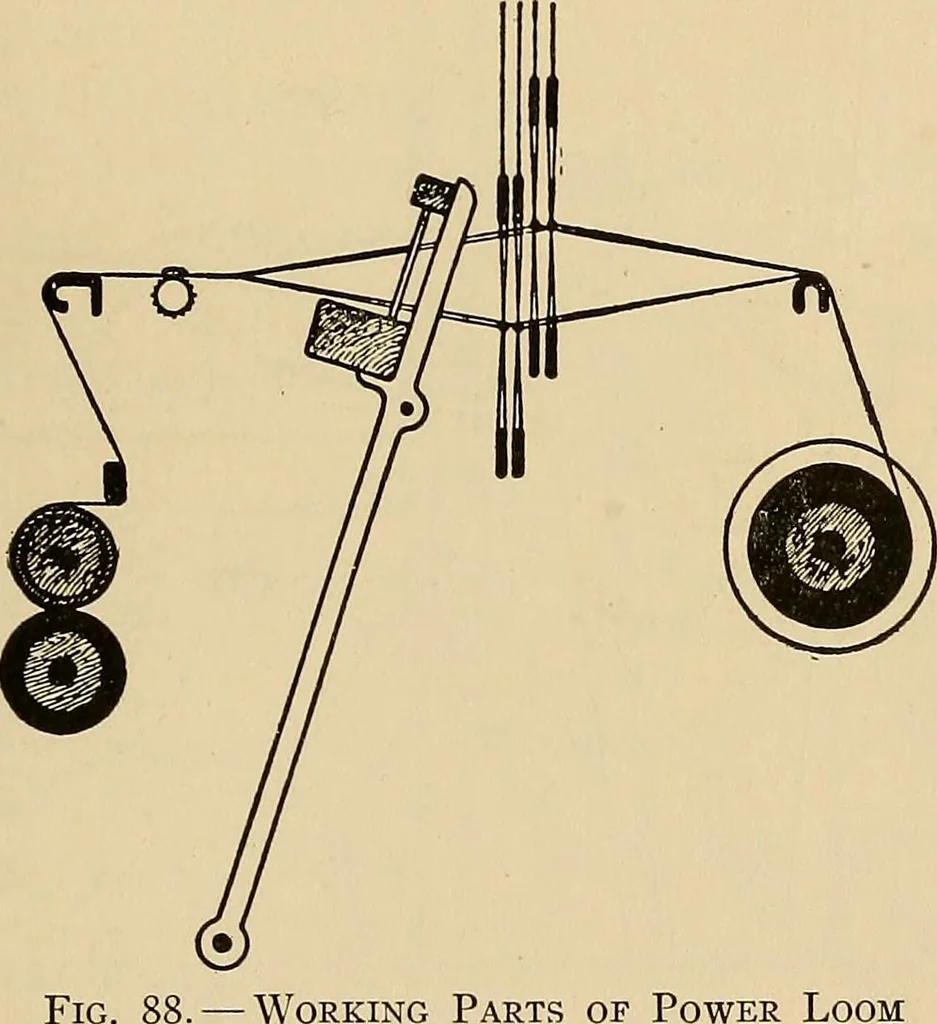

rom below. Outline Example : Roberts power loom.Implement — power loom. 1. frame, solid square structure of iron (29, 29e, i). 2. beams. (i) warp beam with pulley, cord and weightattachment for automatic let off (19,20, 21, 21c, 22, 22d, e). WEAVING TYPES 20I (2) warp roller. (3) cloth beam with… … Fig. Working Parts of Power Loom Left, doth beam, breast beam. Center, reed-batten oscillating from below;four shaft-heddles two down two up opening shed. Right, warp beam. 4-5- 6. 7- bobbin-shuttle thrown by levers (27, 27d, e, f).batten with shuttle-race, shuttle-boxes andpickers is swung from…
