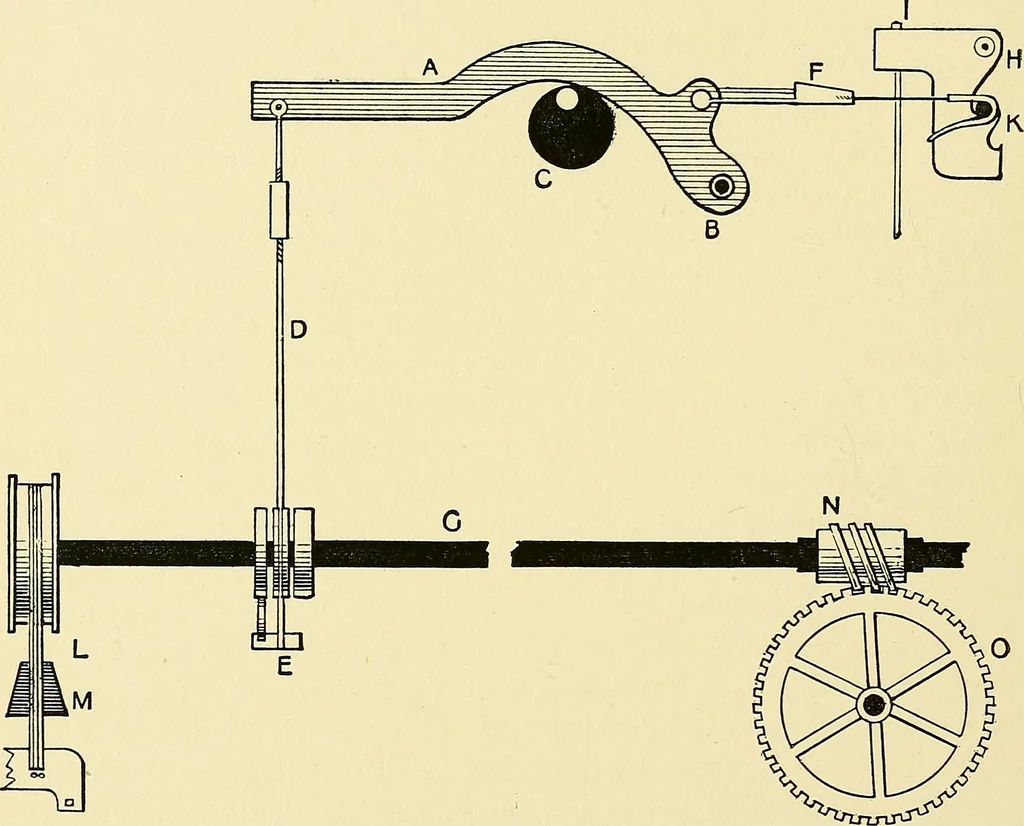

shaft, the worm wheel on the end 152 WEAVING of which acts on the wheel of the warp beam. The screw of thehook connecting the letting-off lever and the vertical arm beforementioned, may be shortened, reducing the length of the drop catch,and the turning of the letting-off shaft. The catch itself… … Fig. 343.—Positive Letting-off Motion A, Lever, b, Fulcrum, c, Eccentric, d, Catch-rod. e, Catch, f. Lever checking screw, g, Main shaft.H, Pin. I, Support. k, Hook. l, Strap. m, Weight. n, Worm thread acting on wheel. one end of the letting-off lever, the catch on the end of the con-necting rod at…
