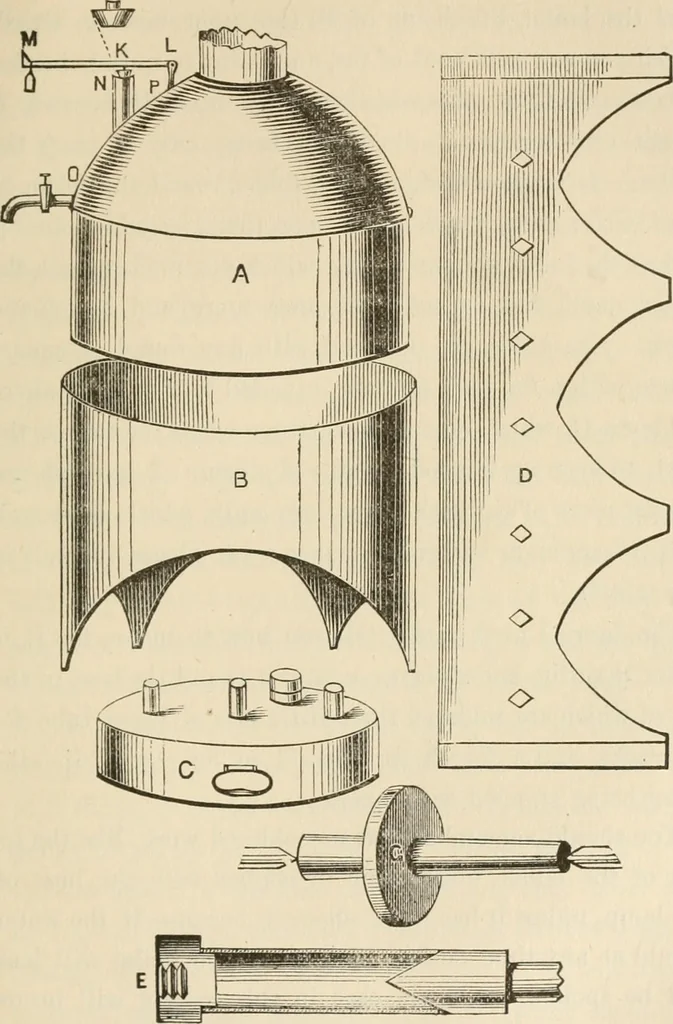

it makingan engine, if, like many, you buy all the parts and havelittle left to do but screw them, or solder them, together.Dont do this, or you will never become a modeller. Your boiler from <? to a is, in height, maybe 2 inches,the dome 1^ or thereabout. This will slip inside the partthat you… … Fig. 69. aSo THE YOUNG MECHANIC. A is the boiler lifted out of B, the outer case or stand,which you can make out of tin, and paint to imitate bricks.It is almost a pity to waste sheet-brass upon it, because itis not v^ery important, its object being only to carry theboiler. It is like D before…
